RF4 RF-FT3X Multifunctional PCB Fixture Heat-Insulating Repair Holder for Phone Motherboard
Rate: ( 0 reviews ) views: 62
Item No.: 6616002022A Ships in 1 - 3 days MOQ: 1
| 1+ units | 2+ units | 10+ units | 20+ units | 50+ units | 100+ units |
| $15.20 | $14.96 | $14.72 | $14.49 | $14.25 | $14.14 |
Contact Sales Manager
- [email protected]
- Ipartsexpert - Ada Shi
+86 - 18620397679
Specifications
- Brand :RF4
- Color :As Shown
- Gross Weight :0.616kg
- Volume Weight :0.210kg
- Length :18.000cm
- Width :13.000cm
- Height :4.000cm
- Weight :0.550kg
- EAN :
- PackageLength :59.000cm
- PackageWidth :40.000cm
- PackageHeight :35.000cm
- PackageQuantity :20
- With Retail Packaging :No
Product Description

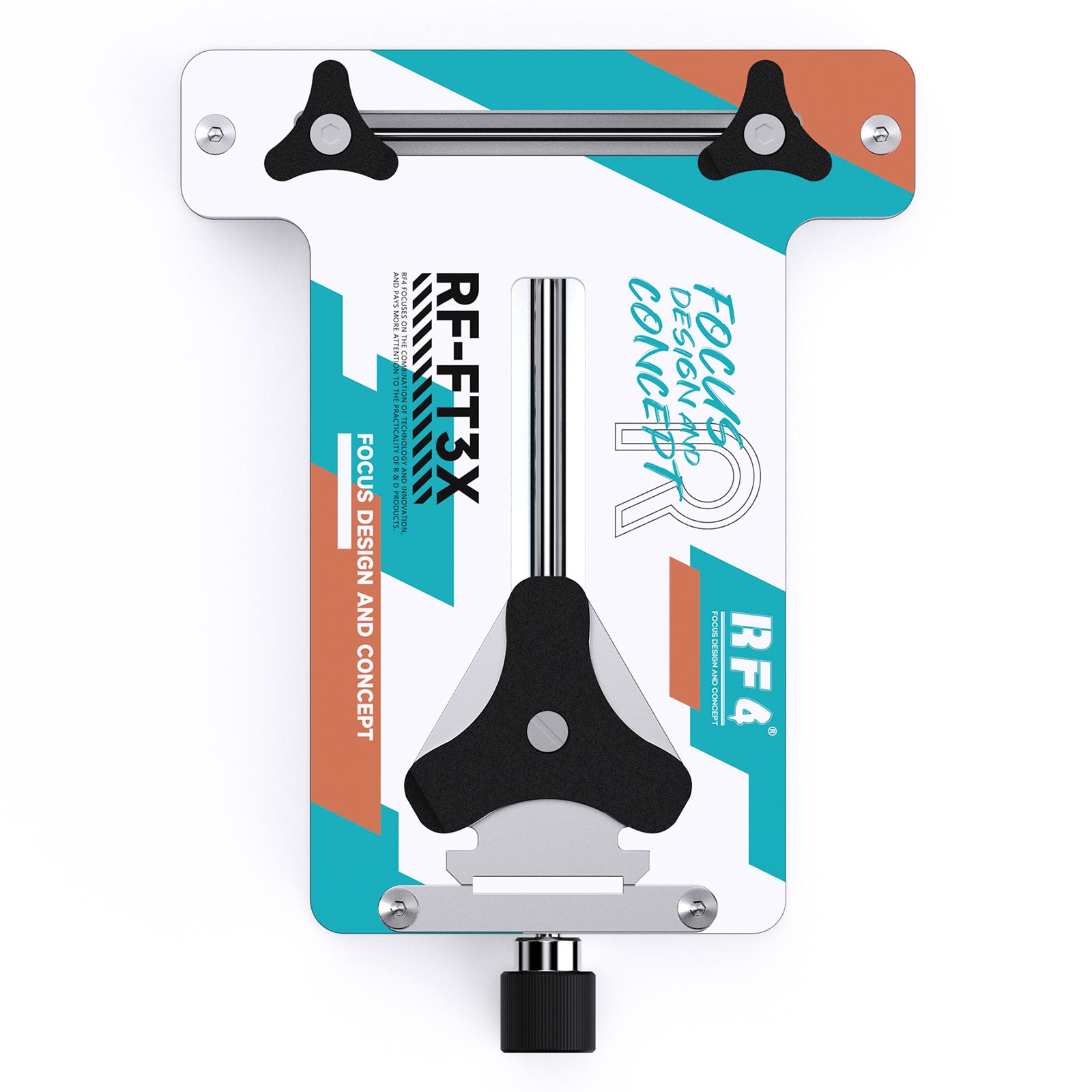

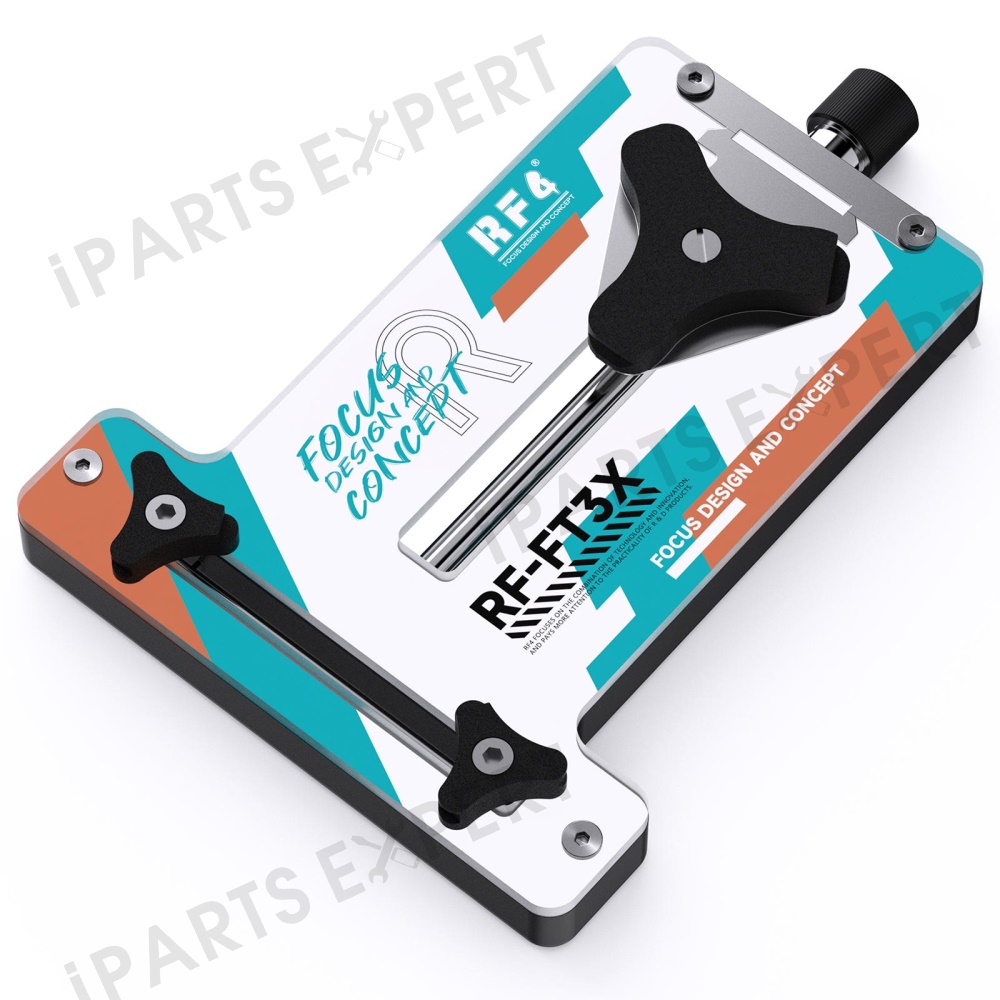

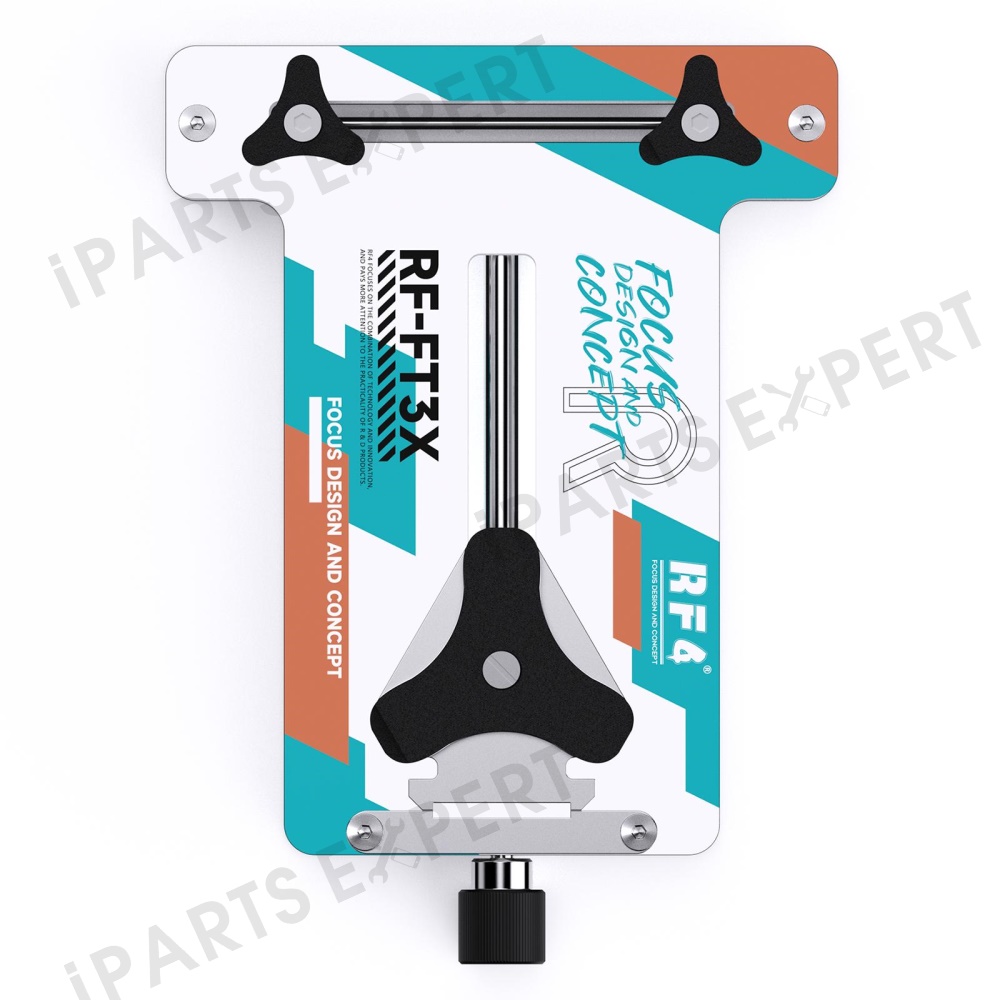

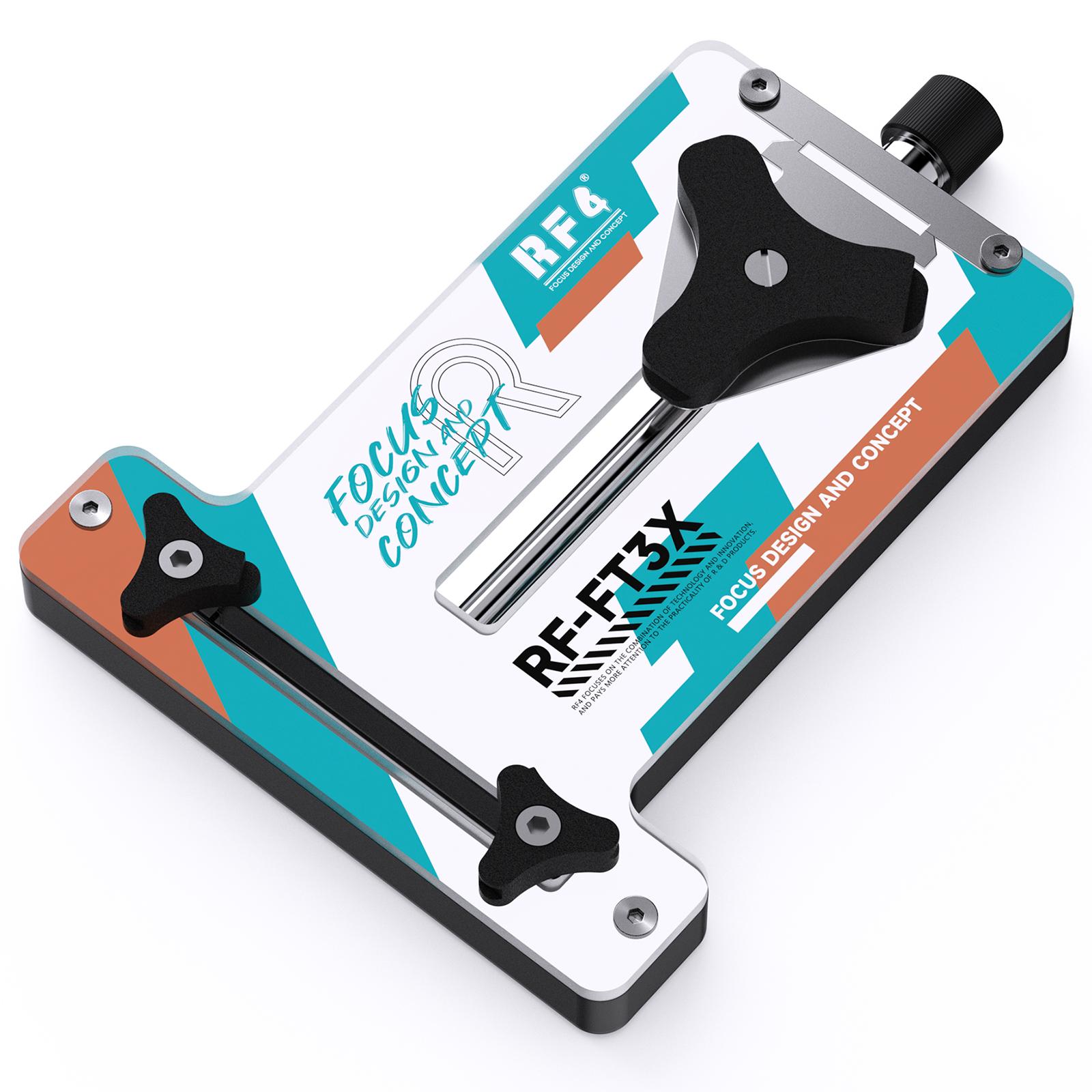

RF4 RF-FT3X Multifunctional PCB Fixture Heat-Insulating Repair Holder for Phone Motherboard

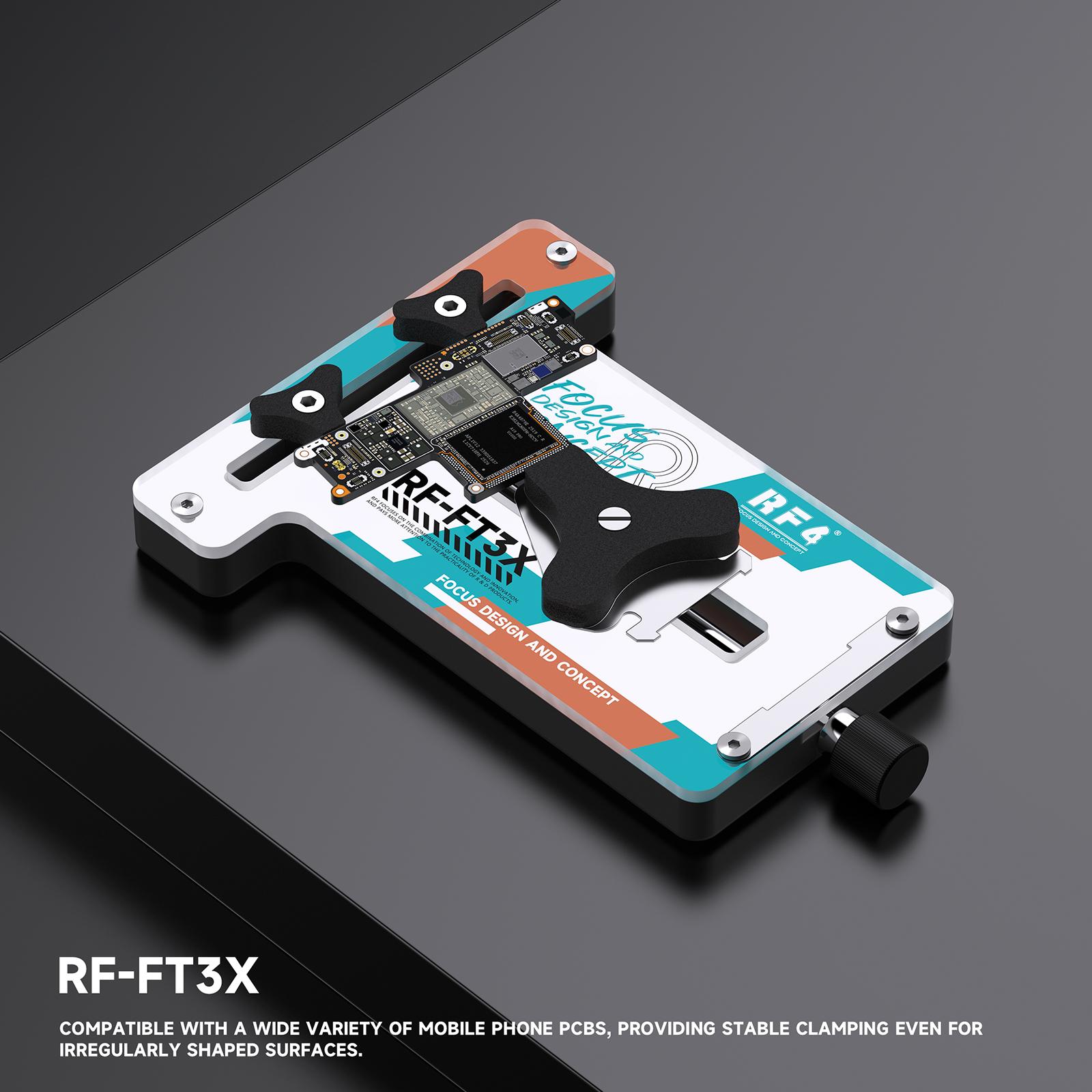

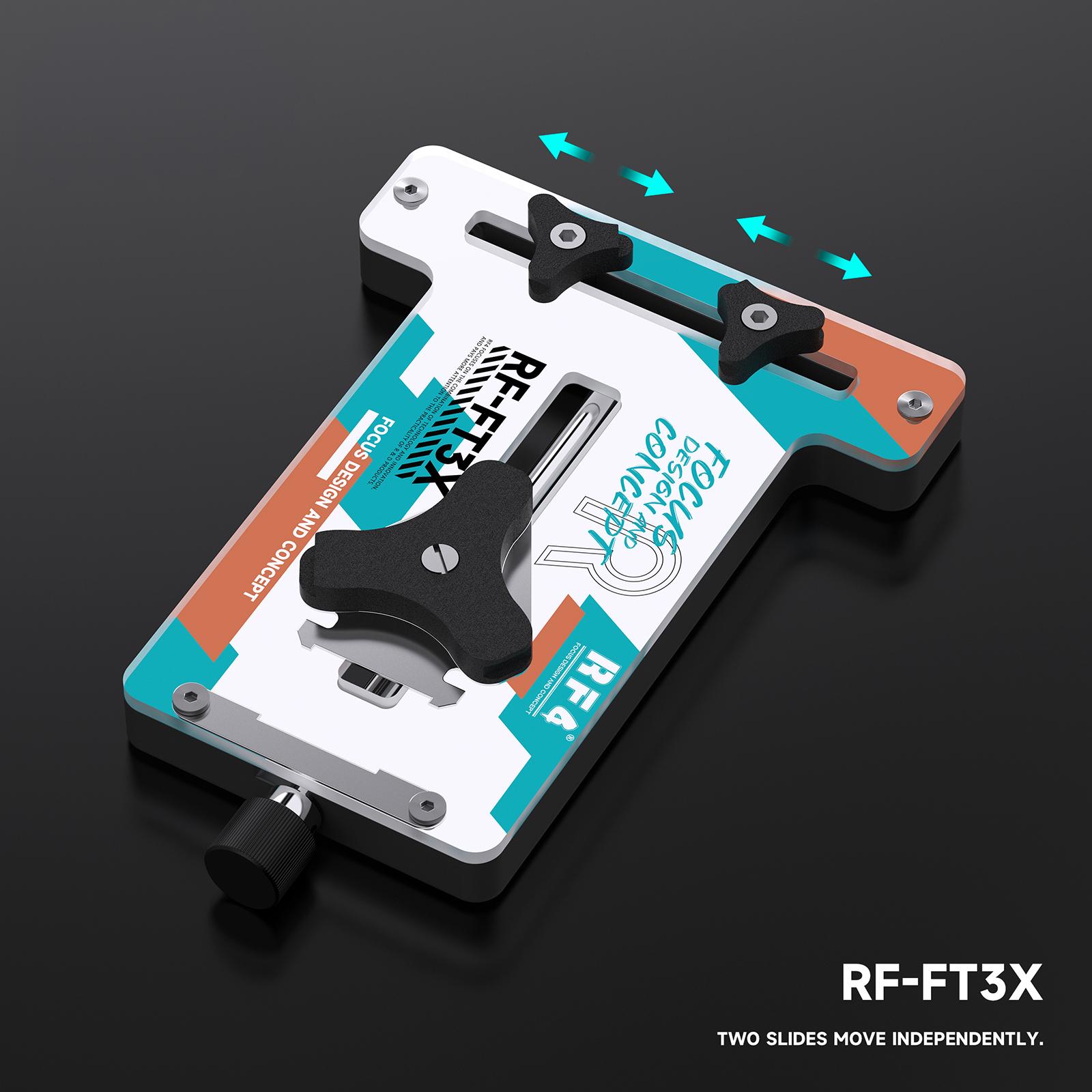

- 【Multi-Directional Adjustable Clamping】The fixture features independent dual-slide rails that can be adjusted both horizontally and vertically, allowing stable clamping of irregularly shaped phone circuit boards.

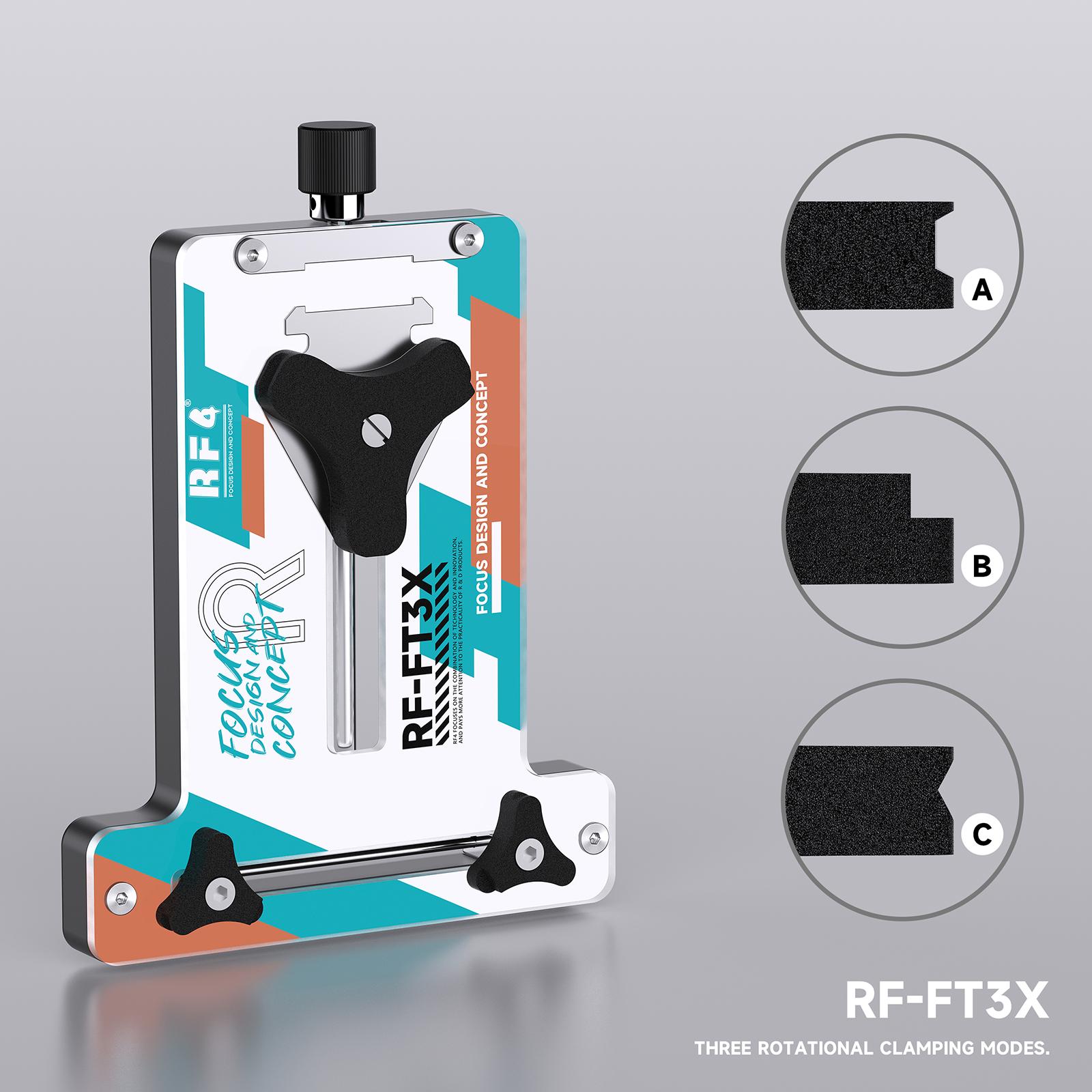

- 【Three Rotational Clamping Modes】Choose from three different anti-slip pad configurations to achieve optimal clamping angles for various PCB shapes and sizes.
- 【Stable BGA Chip Support】Provides a sturdy platform for holding large BGA chips during soldering work, ensuring safer and more precise repair operations.
- 【Premium Construction】Built with anodized aluminum alloy base, black frame and glass, offering durability and a professional look for workshop use.
- 【Precision Height Adjustment】The integrated black knob mechanism at the bottom allows for fine vertical adjustment, enabling precise pressure control during repairs.

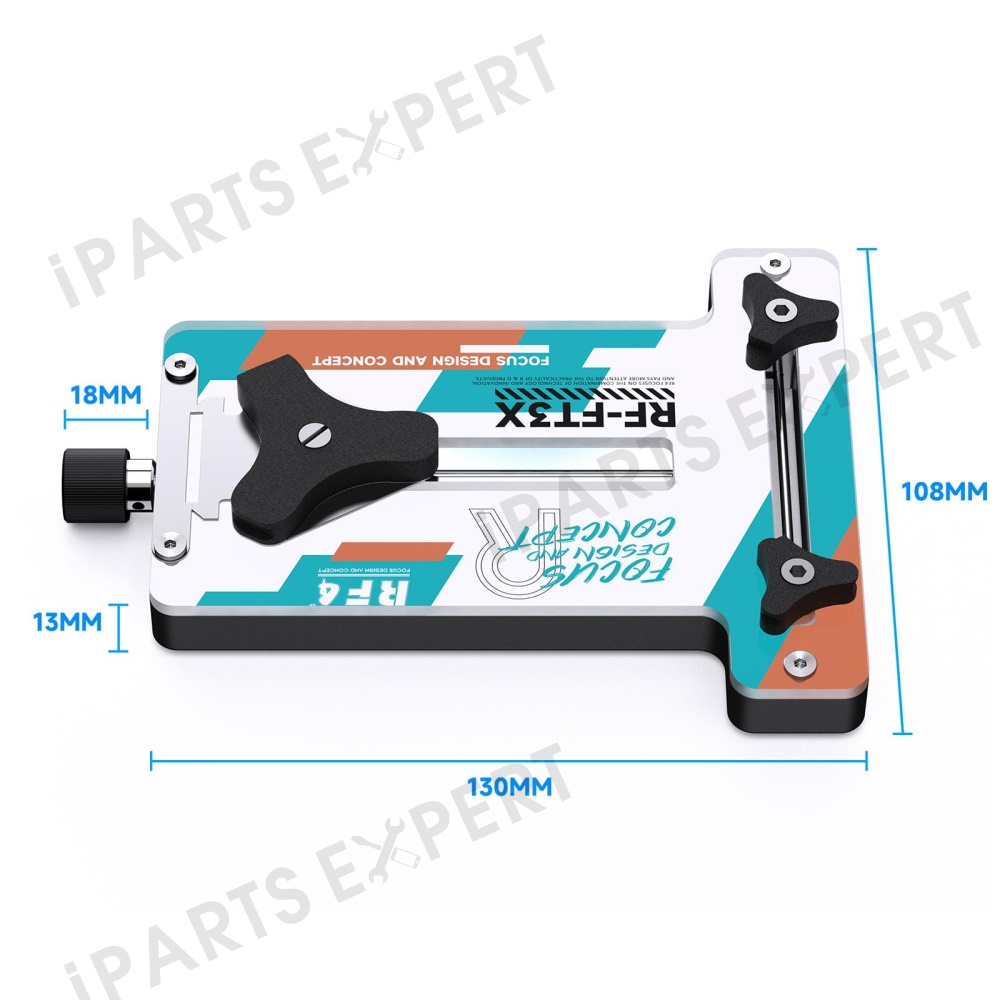

Specifications:

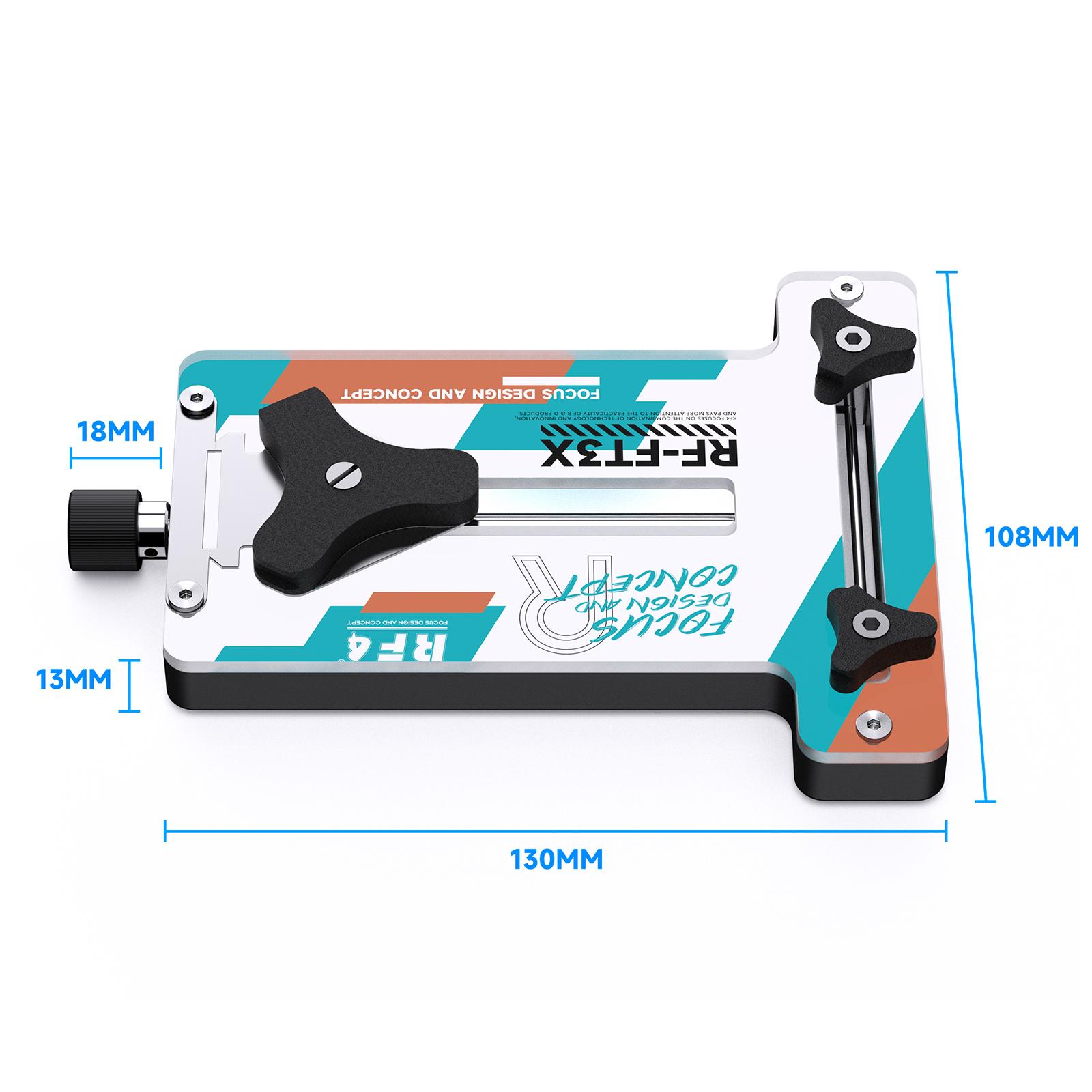

- Model: RF-FT3X
- Length: 130 mm
- Width: 108 mm
- Thickness: 13 mm
Package included:
- 1 x RF4 RF-FT3X PCB Repair Fixture
