SUNSHINE P-3005A 30V 5A DC Laboratory Power Supply Digital Programmable Adjustable Voltage Regulator Switching Stabilizer Power Supply - US Plug
Rate: ( 0 reviews ) views: 62
Item No.: 661600627B Ships in 5 - 7 days MOQ: 1
| 1+ units | 2+ units | 5+ units | 10+ units | 20+ units |
| $58.75 | $58.27 | $57.33 | $56.37 | $55.43 |
- [email protected]
- Ipartsexpert - Ada Shi
+86 - 18620397679
Specifications
- Adapter Plug :US Plug
- Brand :SUNSHINE
- Gross Weight :4.816kg
- Volume Weight :0.999kg
- Length :26.000cm
- Width :15.600cm
- Height :11.000cm
- Weight :4.300kg
- EAN :
- With Retail Packaging :No
Product Description

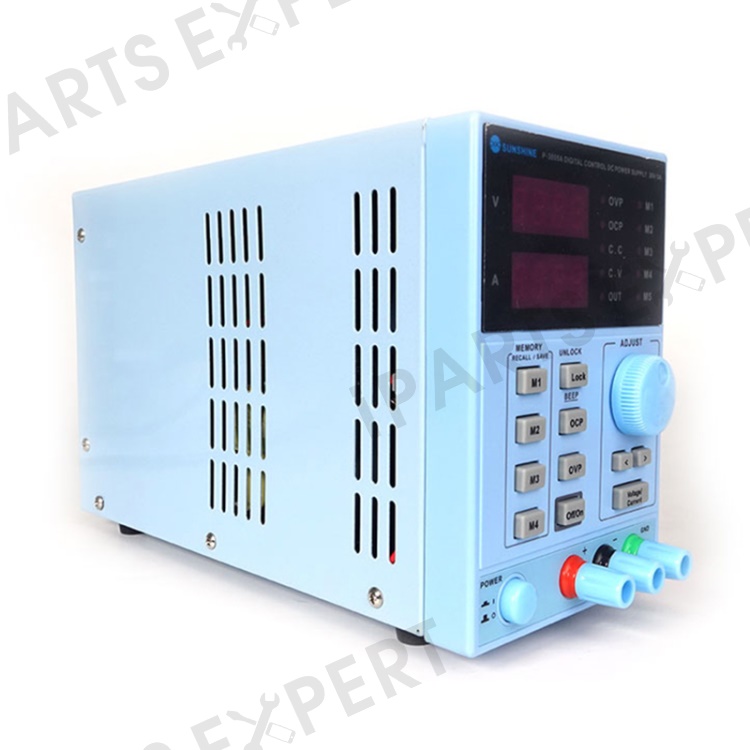

SUNSHINE P-3005A 30V 5A DC Laboratory Power Supply Digital Programmable Adjustable Voltage Regulator Switching Stabilizer Power Supply - US Plug
DC Power Supply is widely used in various environments such as institutions laboratories, automated test equipment, electronic test equipment, factory production line etc.
-

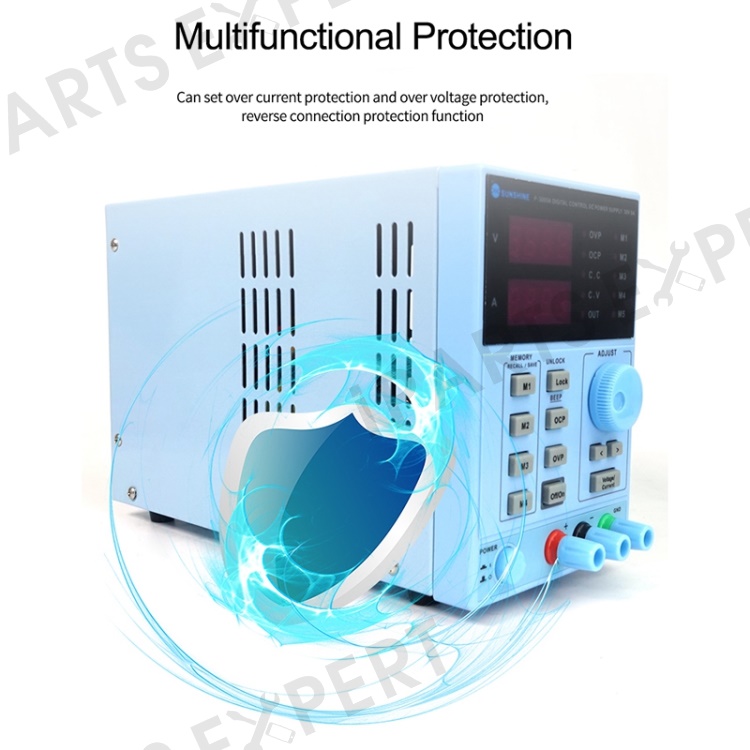

The 5A adjustable dc power supply is with high quality and high power transformer, the machine power is enough, can really achieve the voltage output 30V, current output 5A, and can accurately set the protection current size
-
4 bit accurate control and display, bring more precise control, and constant pressure flow protection mode, effective protection of the safety of the load
- Built-in temperature control protection circuit, when the machine's internal heating temperature of over
-
Five sets of storage can be called, more convenient to use at work can save five sets of data, and it can be called out the next time ( No need to readjust)
-
Adjustable DC power supply, stable performance index, pure and reliable output and clear LED voltage and current display
Specifications:
| Brand | SUNSHINE |
| Model | P-3005A |
| Product | IC programmable DC power supply |
| Size | 110 (W)*156 (H)*260 (D) mm |
| Weight | 4.3kg |
| Output voltage | 0-30V |
| Output current | 0-5A |
| Number of channels | Single channel |
| Output resolution | Voltage: 1mV electric current: 1mA |
| Display type | Voltage/electric current/4-digit digital display |
| Load effect | Voltage: ≤0.01%+2mV electric current: ≤0.02%+10mA |
| Power supply effect | Voltage: ≤0.01%+3mV electric current: ≤0.02%+3mA |
| Set accuracy | Voltage: ≤0.5%+20mV electric current: ≤0.01%+10mA |
| Ripple | Voltage: ≤2mVrms electric current: ≤3mArms |
| Output temperature coefficient | Voltage: ≤150ppm electric current: ≤150ppm |
Compatible with:
- Universal
Package included:
- 1 x Regulated DC Power Supply
- 1 x 10A Power Cord
