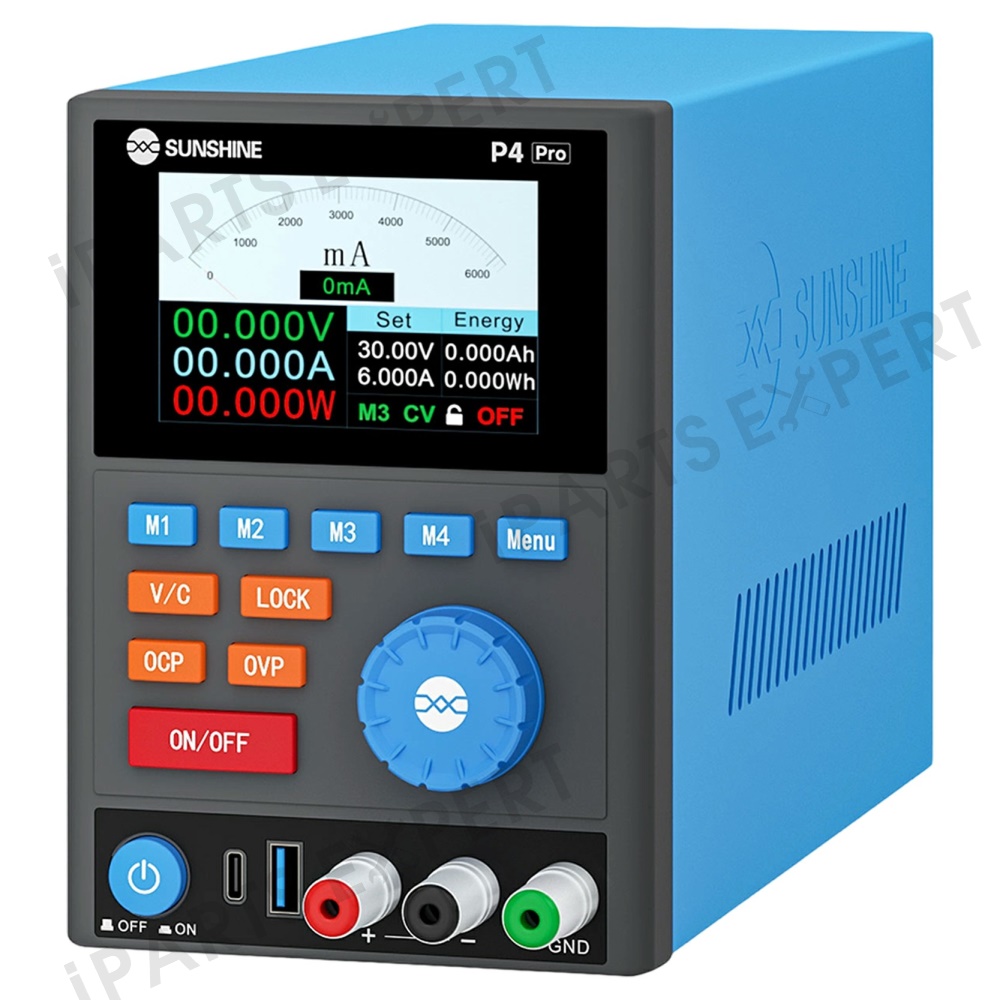

SUNSHINE P4 Pro Digital Controlled DC Power Supply 30V 6A High Frequency Output Four-Level Memory - UK Plug

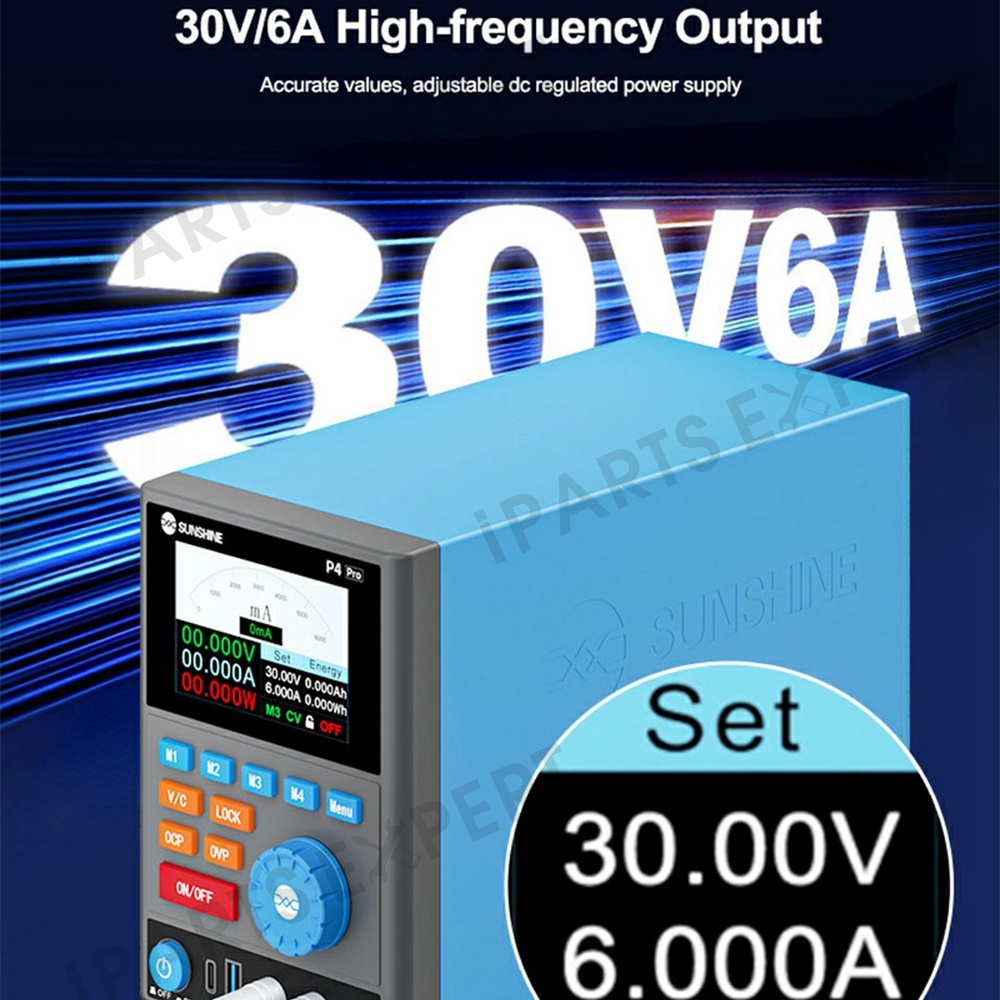

• 【Precision Output】Features a high-frequency 30V/6A output, providing an accurate and adjustable DC regulated power supply. With a voltage range of 0-30V and current range of 0-6A, it offers exceptional precision for various applications.

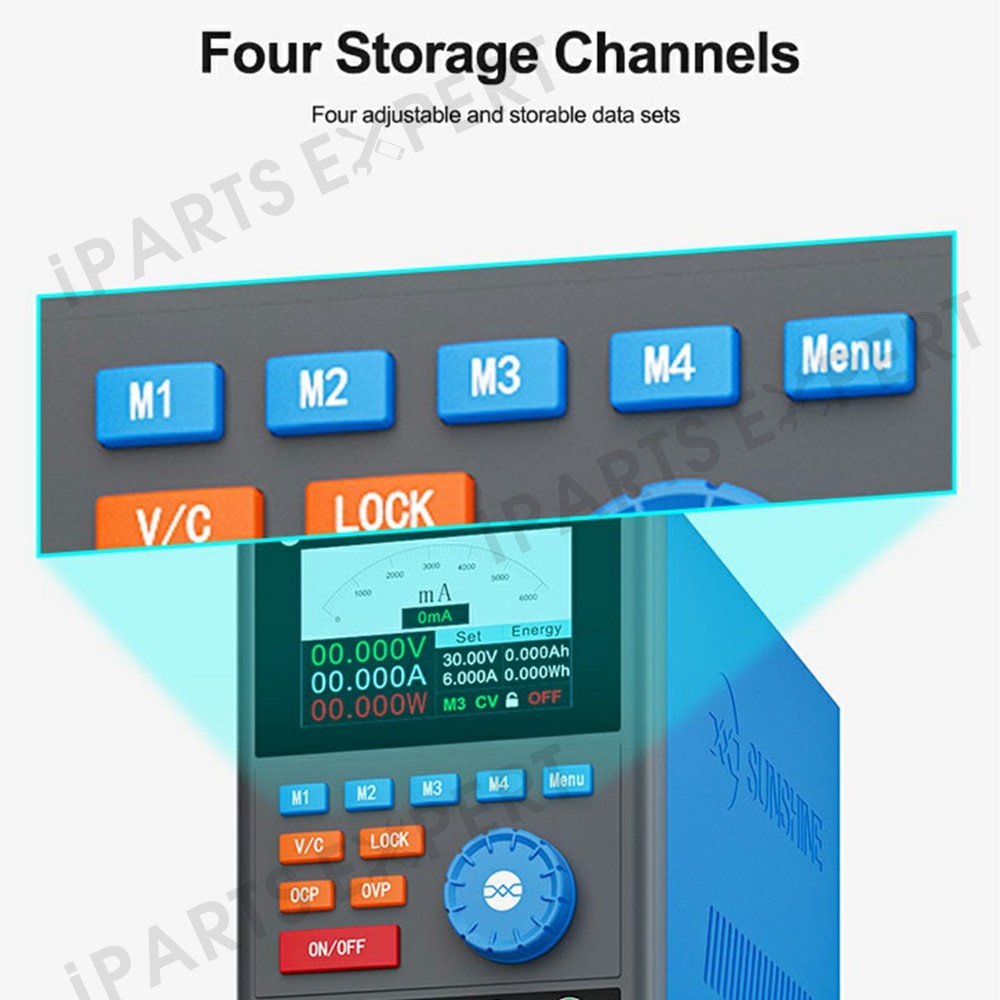

• 【Multi-Level Memory】Equipped with four-level memory (M1-M4), it allows for four adjustable and storable data sets. This feature enables quick access to frequently used settings, enhancing efficiency in repetitive tasks.

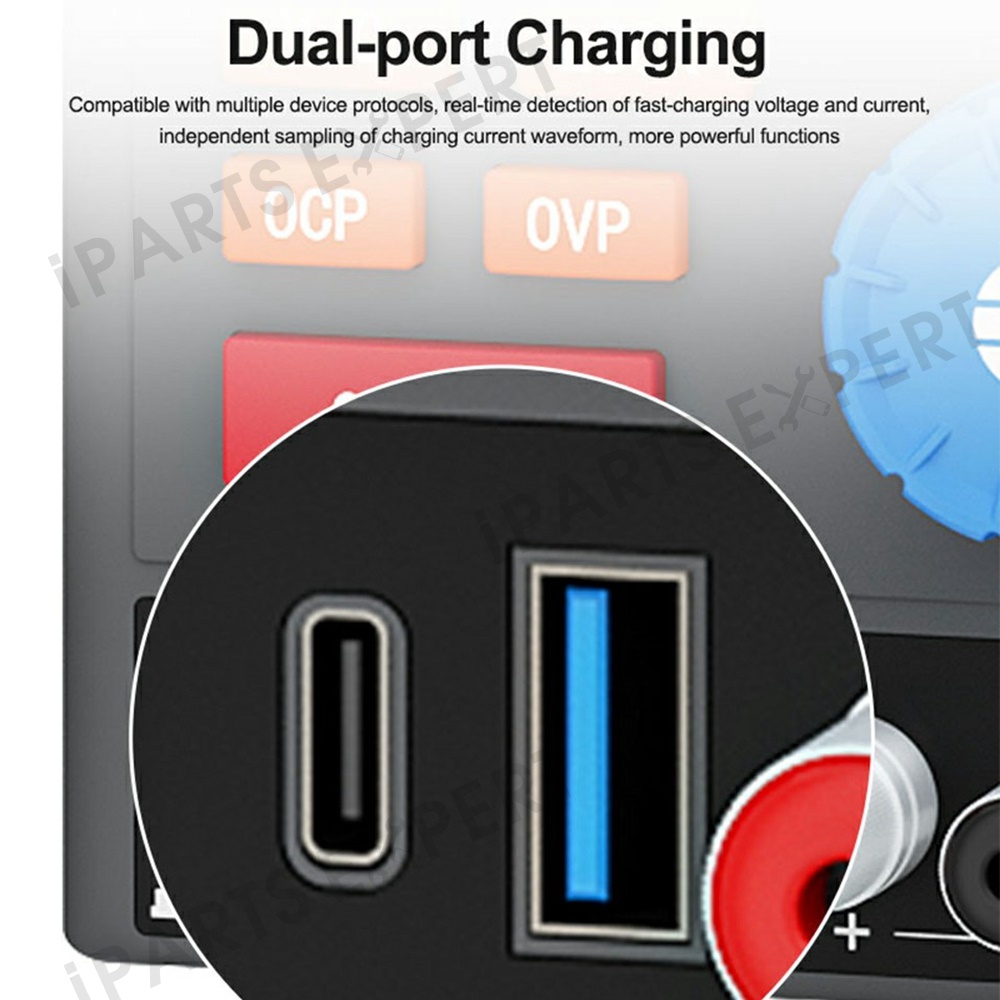

• 【Dual-Port Charging】The device incorporates both Type-C and USB-A interfaces, ensuring compatibility with multiple device protocols. It supports real-time detection of fast charging voltage and current, making it versatile for various charging needs.
• 【Current Curve Visualization】Featuring a high-refresh rate screen, it clearly captures and displays current fluctuations. This significantly improves the visibility of transient current changes, enabling more efficient and accurate fault analysis based on visual data.

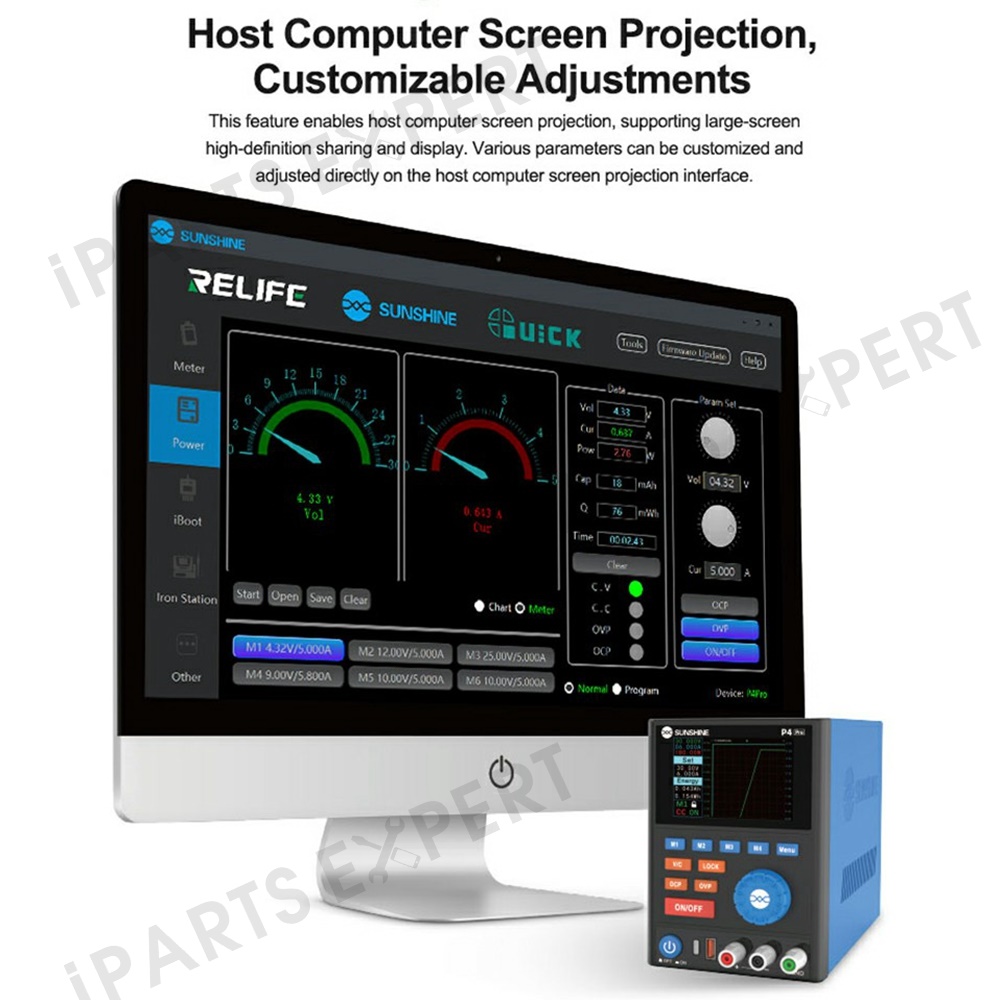

• 【Upper Computer Sharing】It supports host computer screen projection, allowing for large-screen, high-definition sharing and display. Users can customize and adjust various parameters directly on the projected interface, offering enhanced control and visibility.

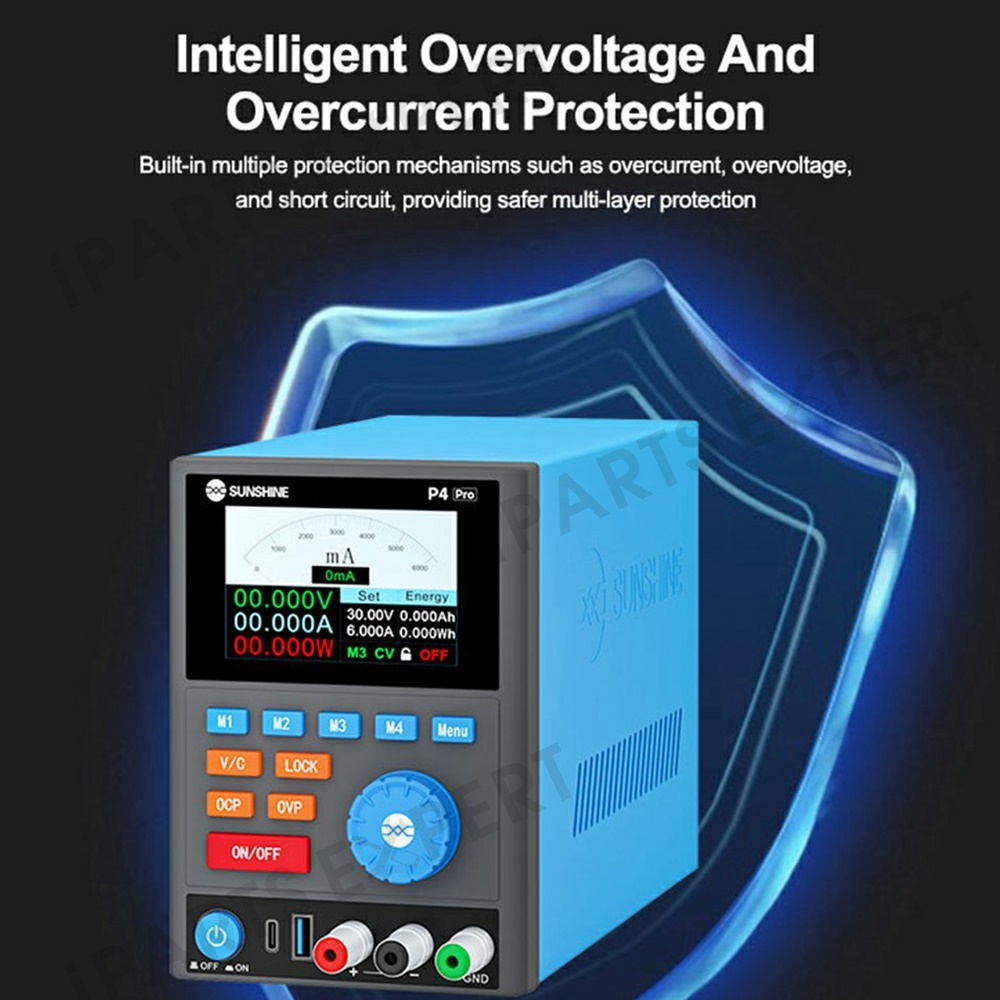

• 【Intelligent Protection】Built-in multi-level safety mechanisms include overcurrent, overvoltage, and short-circuit protection, ensuring the security of both the power supply and connected devices.

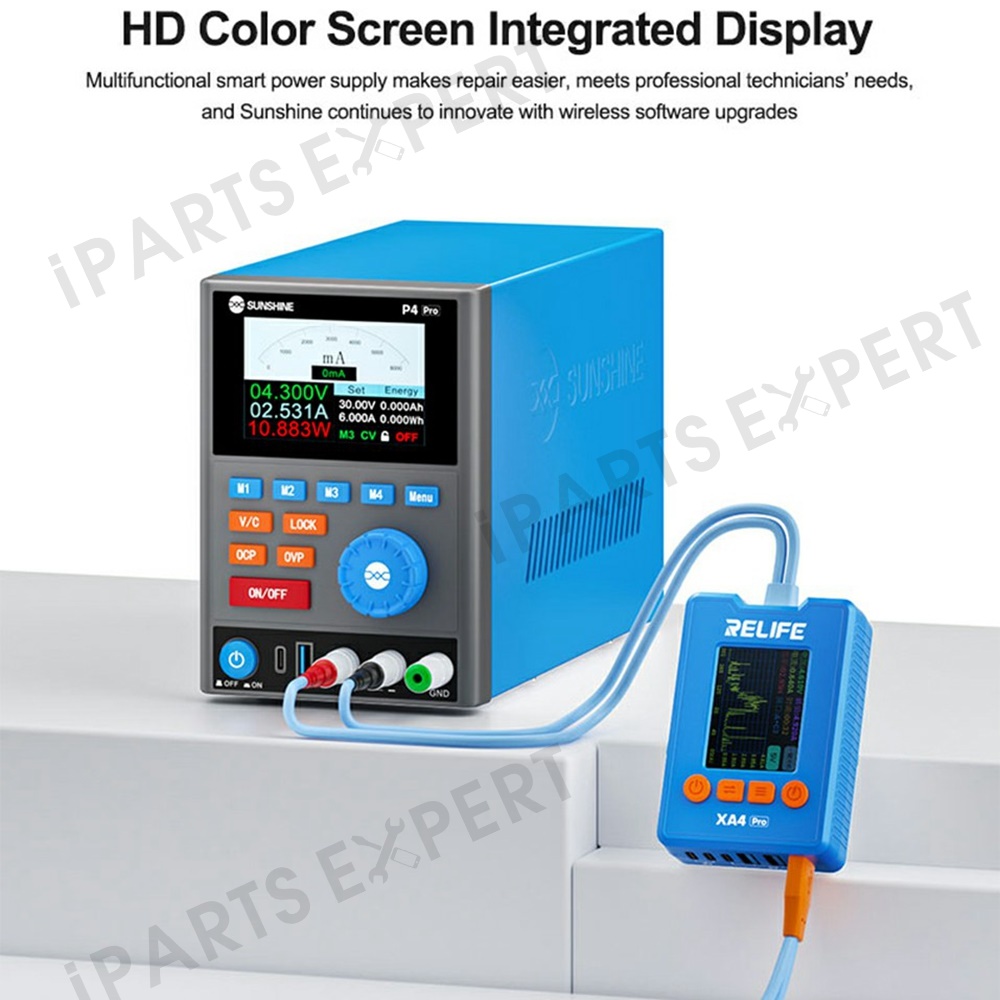

• 【Advanced Display and Upgrade】Featuring an HD color screen for integrated display, this smart power supply simplifies repair processes and meets the demands of professional technicians. It also supports wireless software upgrades, ensuring the device stays up-to-date with the latest features and improvements.

Specifications:

• Model: P4 Pro
• Product Name: Digital controlled DC power supply

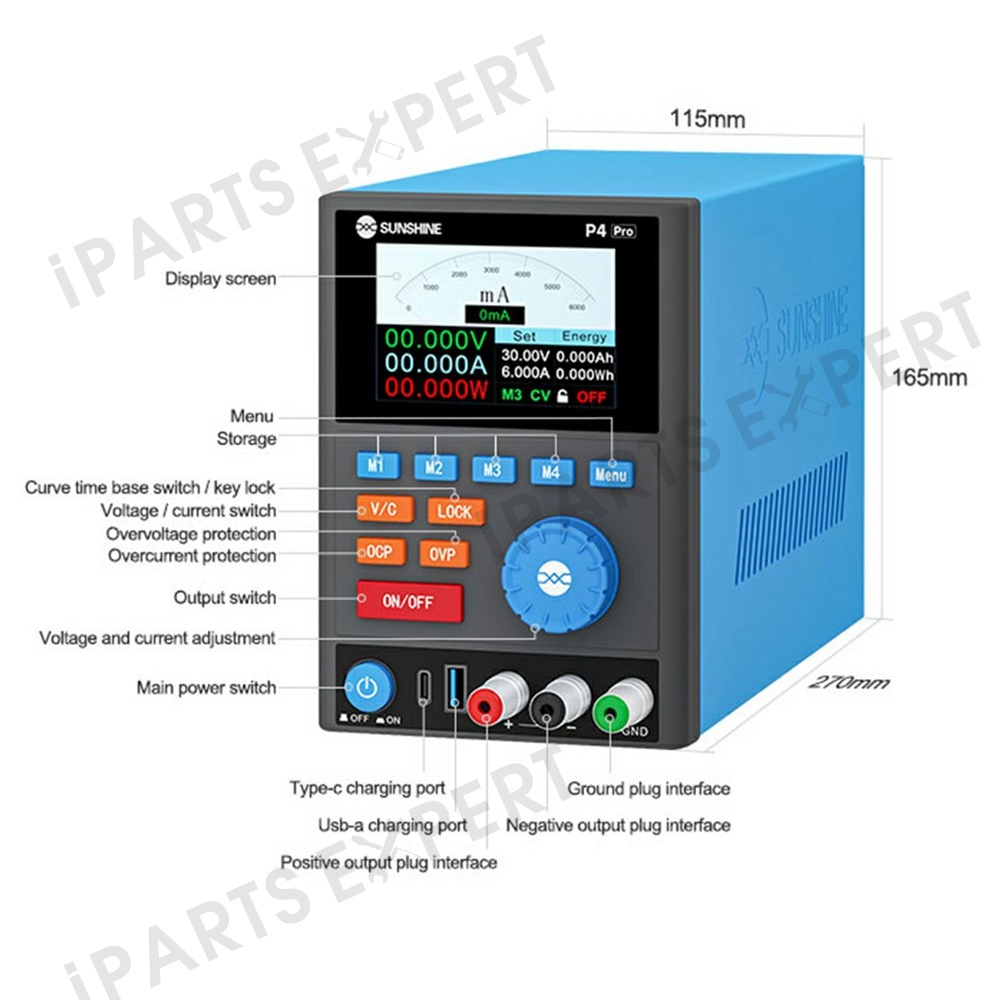

• Product Dimensions: 115mm x 270mm x 165mm
• Net Weight: ≈ 3.8kg
• Voltage Range: 0~30V
• Current Range: 0~6A
• Output Resolution: 10mV / 1mA
• Setting Accuracy (25°C±15°C): ≤0.5% + 20mV / ≤0.5% + 5mA
• Load Effect: ≤0.01% + 2mV / ≤0.02% + 10mA
• Power Supply Effect: ≤0.01% + 3mV / ≤0.1% + 3mA
• Ripple (20~20m): ≤2mVrms / ≤3mArms
• Output Temperature Coefficient: 150ppm
• Readback Resolution: 1mV / 1mA
• Reading Temperature Coefficient: ≤100ppm + 10mV / ≤100ppm + 5mA
• Response Time (10% rated load): ≤100mS
• USB-C Supported Protocols: PD3.0/PPS/QC2.0/QC3.0/QC3+/IP 5V,2.4A/AFC/FCP/SCP/HSCP
• USB-A Supported Protocols: QC2.0/QC3.0/IP 5V,2.4A/AFC/FCP/SCP/HSCP
