RELIFE RL-M5T-B11 Trinocular HD Microscope 7-50X Zoom Microscope for Phone Repair
Rate: ( 0 reviews ) views: 62
Item No.: 6616001667A Ships in 1 - 3 days MOQ: 1
| 1+ units | 2+ units | 5+ units | 10+ units | 20+ units | 50+ units |
| $173.32 | $171.90 | $170.48 | $169.05 | $167.63 | $166.21 |
Contact Sales Manager
- [email protected]
- Ipartsexpert - Ada Shi
+86 - 18620397679
Specifications
- Gross Weight :4.424kg
- Volume Weight :7.658kg
- Length :38.500cm
- Width :37.000cm
- Height :24.000cm
- Weight :3.950kg
- EAN :
- PackageLength :59.000cm
- PackageWidth :40.000cm
- PackageHeight :35.000cm
- PackageQuantity :1
- With Retail Packaging :No
Product Description

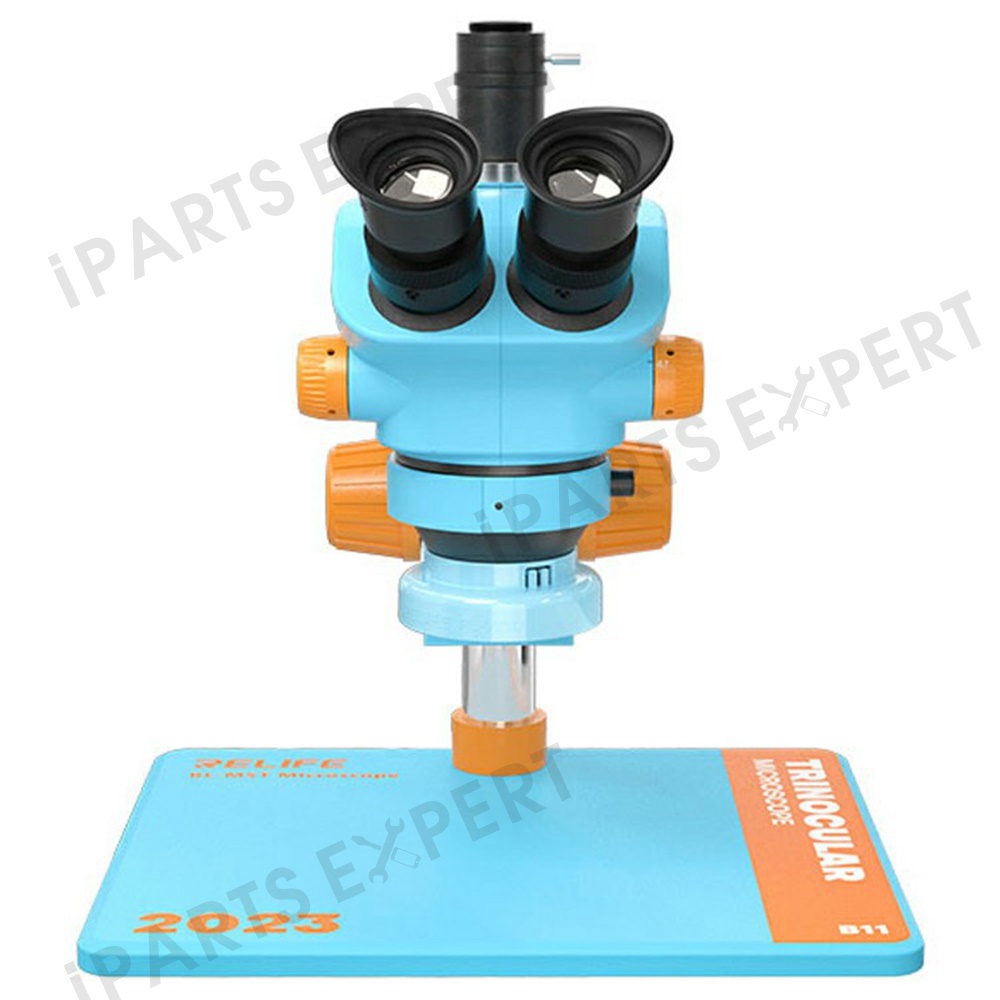

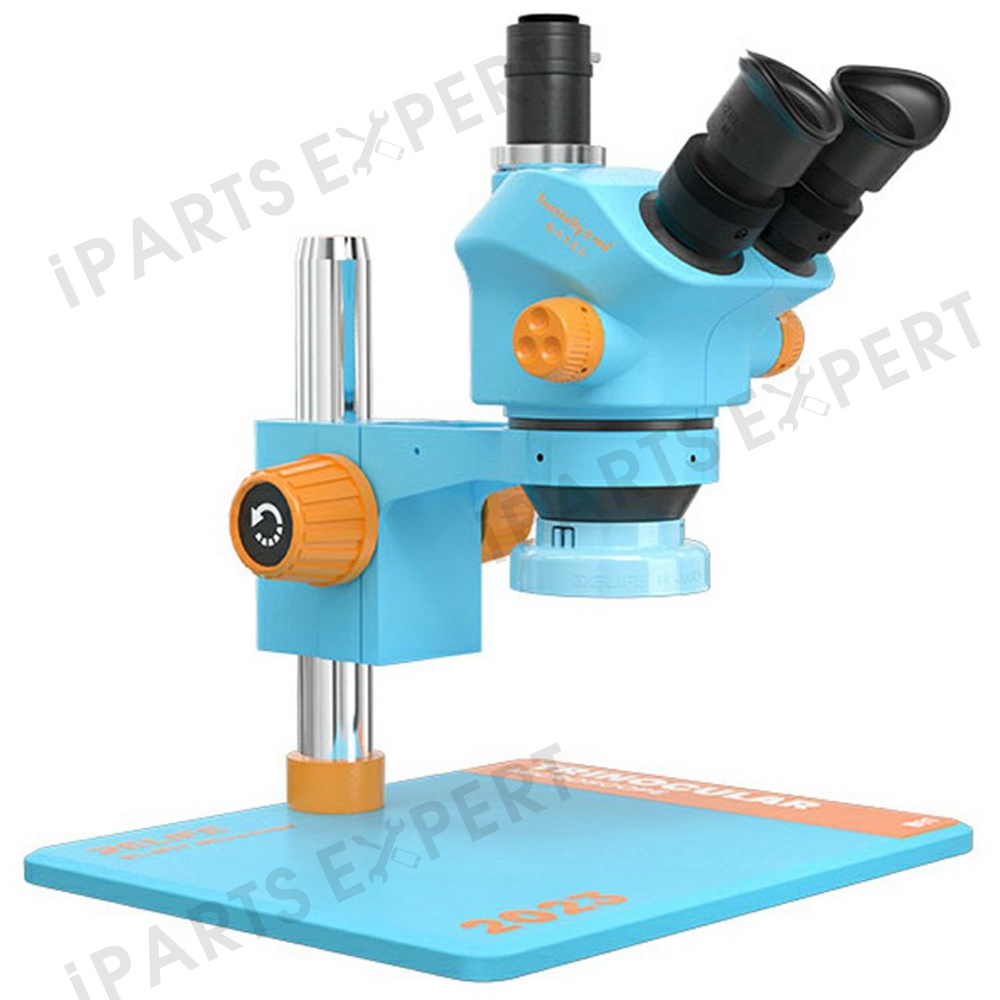

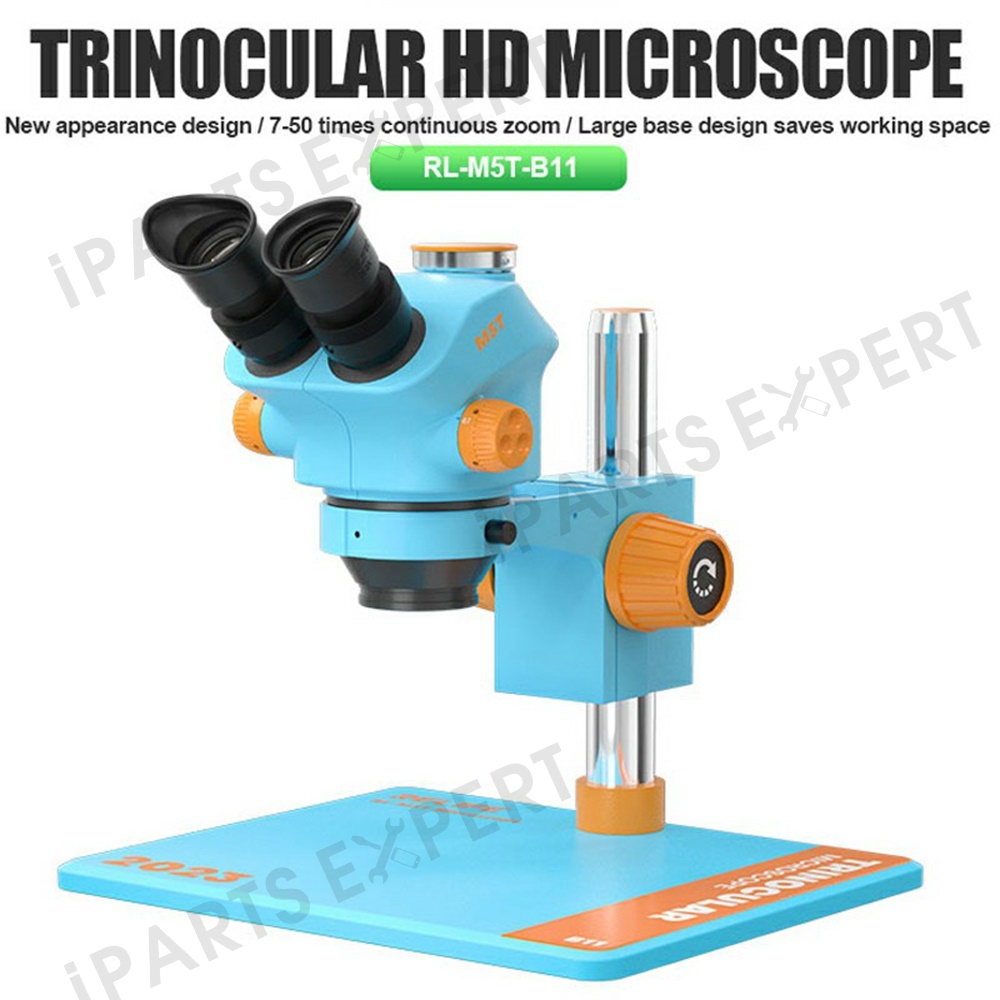

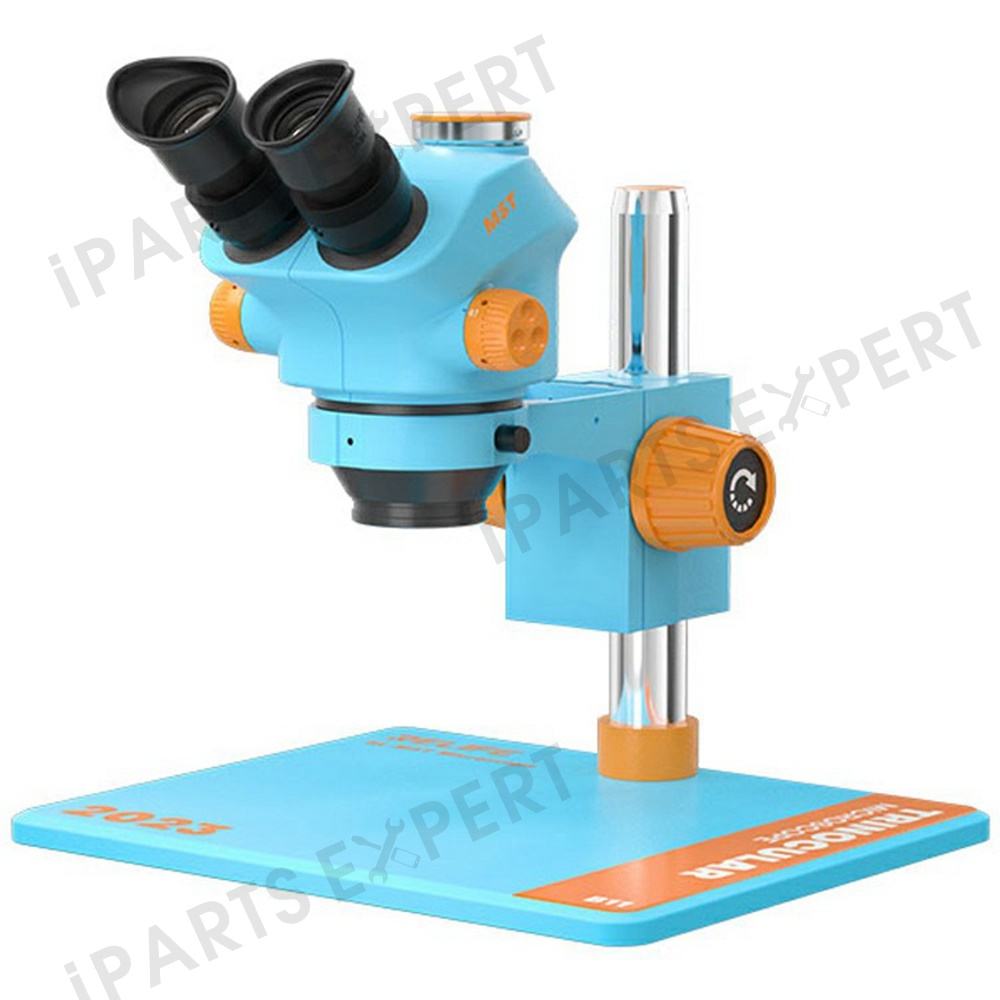

RELIFE RL-M5T-B11 Trinocular HD Microscope 7-50X Zoom Microscope for Phone Repair
- 【Professional Trinocular Design】Features a three-eyepiece system with photography/video output port, enabling simultaneous observation and image capture for documentation and analysis.

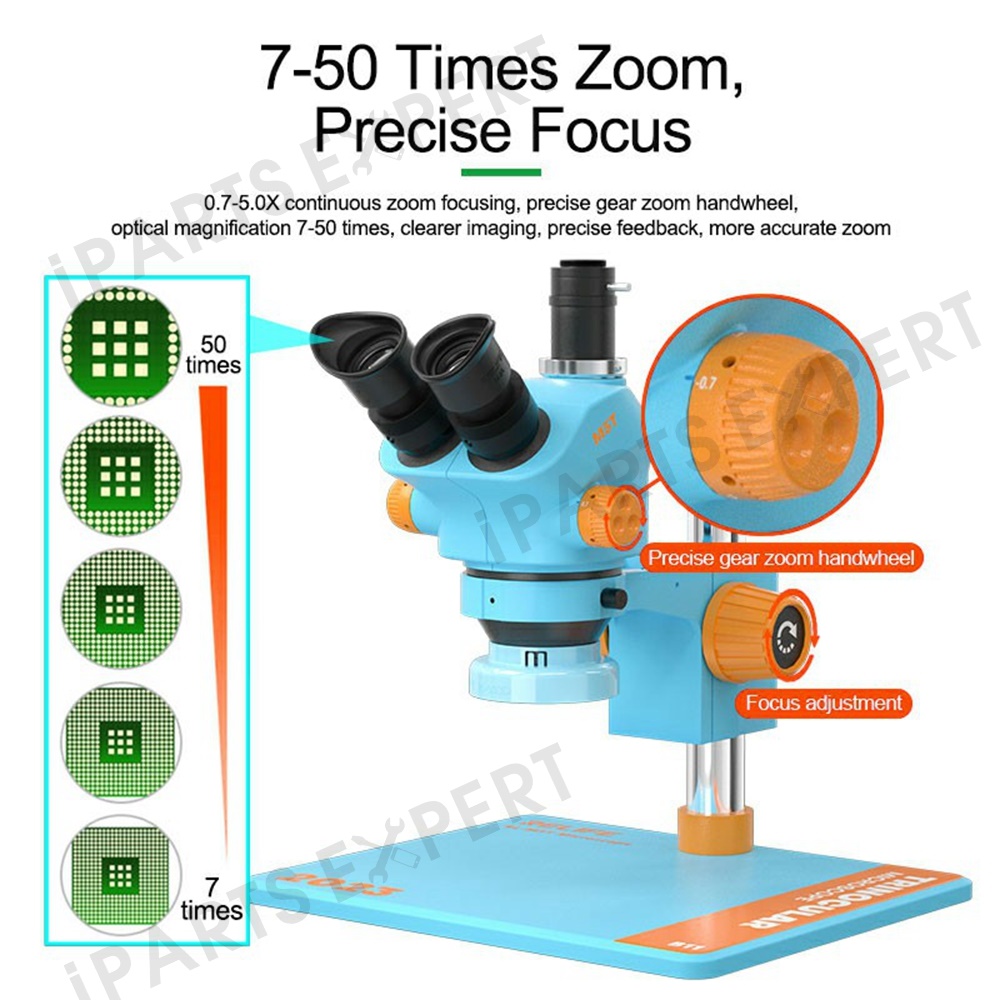

- 【Continuous 7-50x Zoom】Advanced 0.7-5.0x continuous zoom optical system with precision gear zoom handwheel delivers optical magnification from 7x to 50x for detailed inspection work.
- 【HD Optical Imaging】High-definition coated objective lens with pure copper lens barrel eliminates glare and provides crystal-clear, sharp imaging for precise observation.

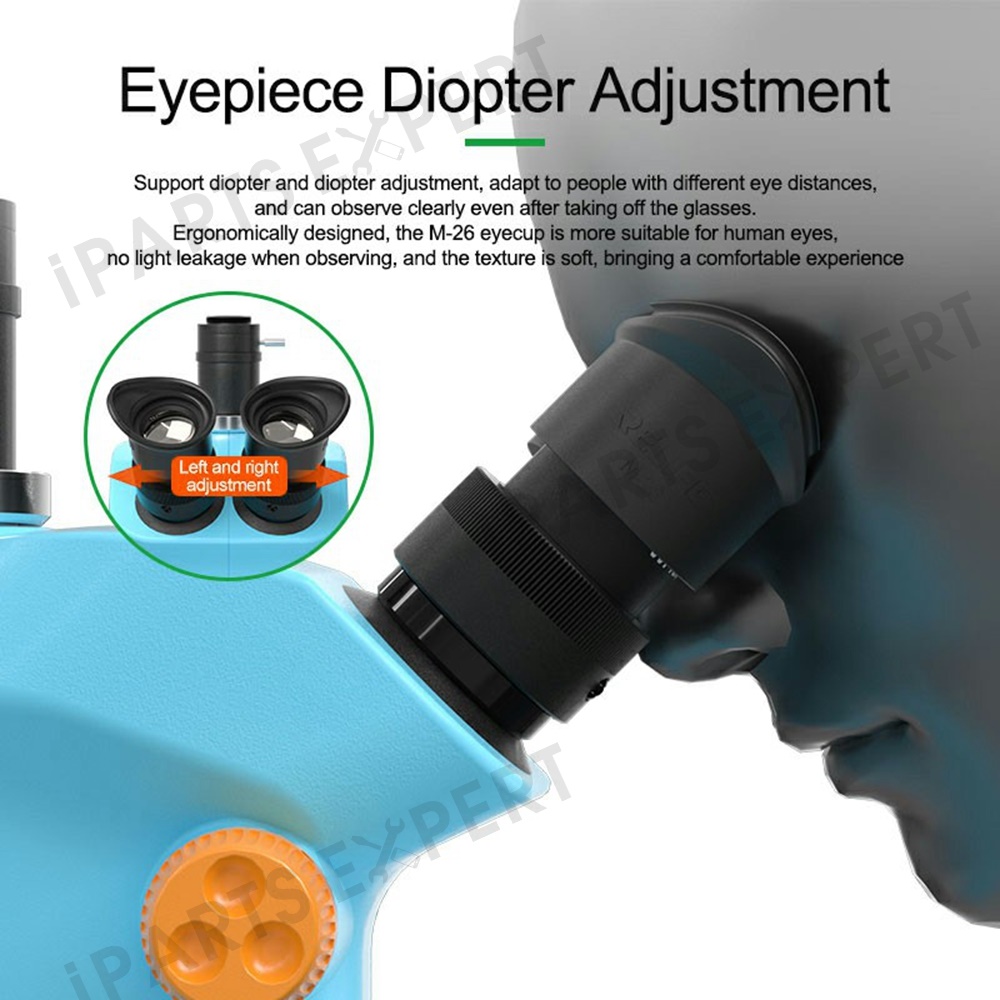

- 【Ergonomic Eye Comfort】M-26 eyecups with diopter adjustment support different eye distances, allowing clear observation even without glasses, featuring soft texture for comfortable extended use.
- 【Large Working Space】Oversized B11 aluminum alloy base (260×320mm) with guaranteed 100mm working distance provides ample space for handling large components and samples.
- 【Adjustable LED Ring Light】RL-033D LED ring light source with quick-mount design offers adjustable brightness and focused illumination without occupying operation space.

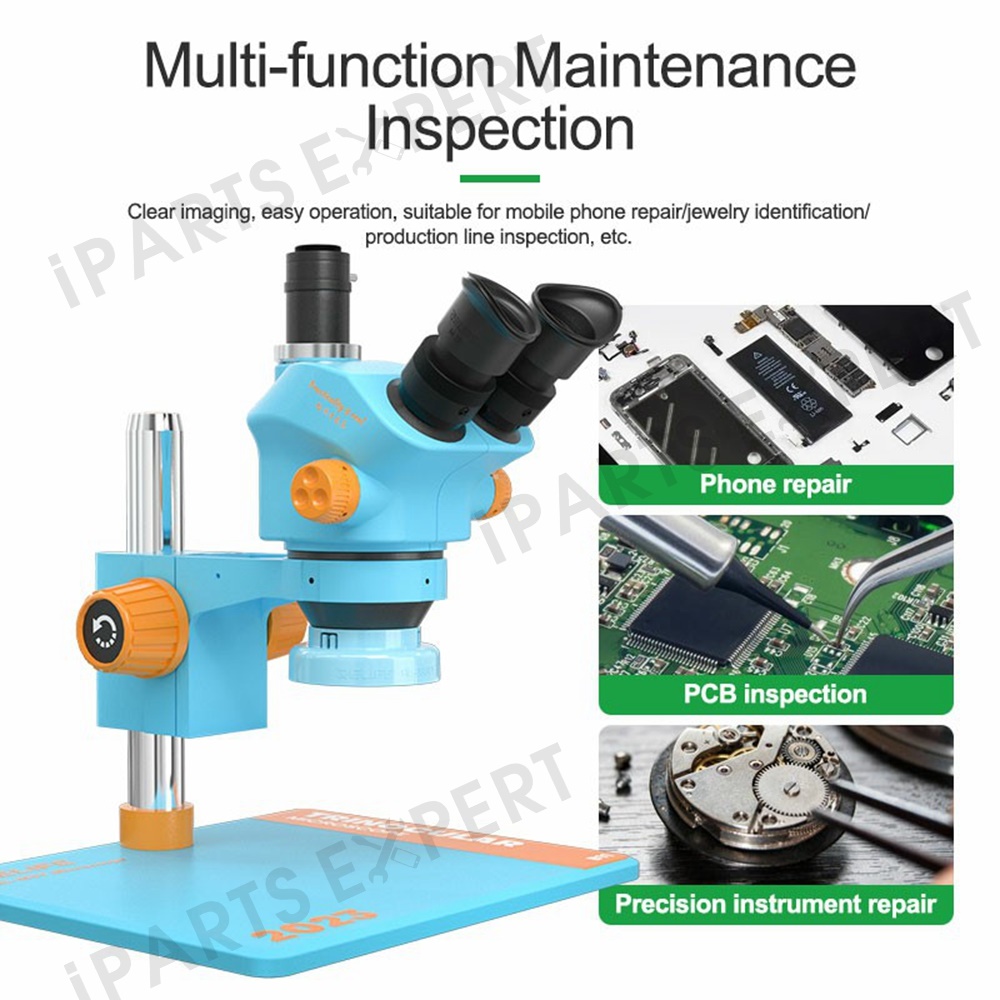

- 【Versatile Applications】Ideal for mobile phone repair, PCB inspection, precision instrument maintenance, jewelry identification, and production line quality control.
Specifications:
- Magnification Range: 7x - 50x (with 10x eyepieces)
- Zoom System: 0.7x - 5.0x continuous zoom
- Working Distance: ≥100mm

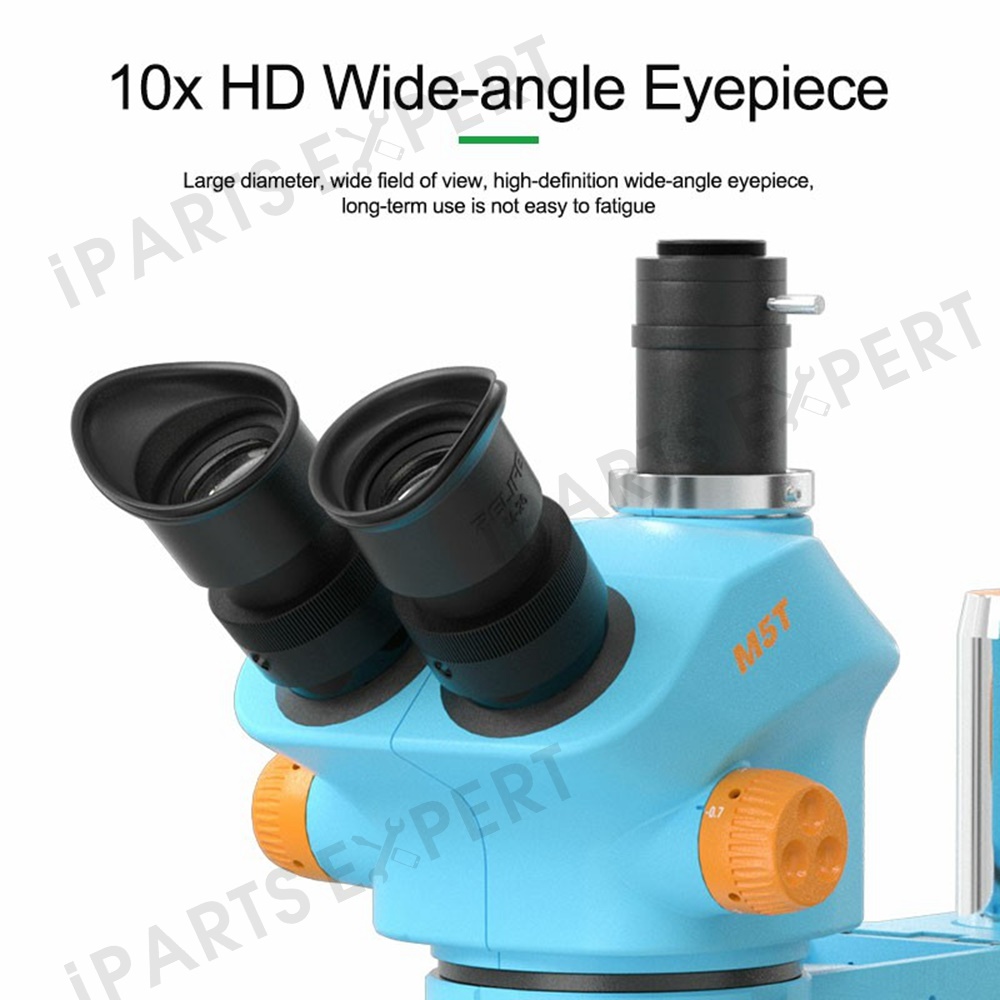

- Eyepieces: WF10x22 wide-angle with diopter adjustment
- Objective Lens: HD coated optical lens with pure copper barrel
- Base Material: B11 aluminum alloy
- Base Dimensions: 260 x 320 x 17 mm
- Column Dimensions: 245 x 32 mm
- Overall Dimensions: 385 × 248 × 370 mm
- Net Weight: 3 kg
- Illumination: RL-033D LED ring light with adjustable brightness
- Output Port: CTV adapter compatible (C-mount interface)
- Focus System: Precision coarse and fine adjustment wheels

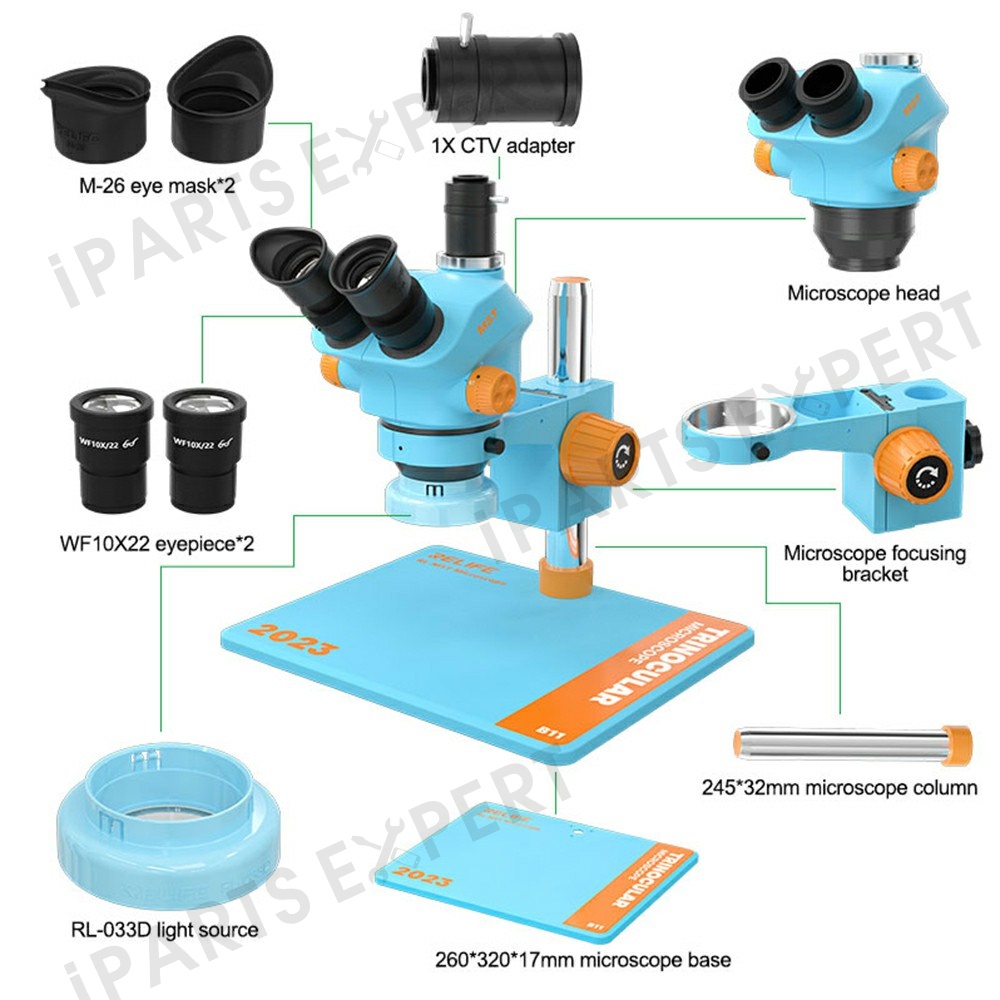

Package included:
- 2 x M-26 Eye Mask
- 1 x CTV Adapter
- 1 x Microscope Head
- 2 x WF10X22 Eyepiece
- 1 x RL-033D Light Source
- 1 x 260*320*17mm Microscope Base
- 1 x 245*32mm Microscope Column
- 1 x Microscope Focusing Bracket
- 1 x M-28 0.5X CTV Adapter
