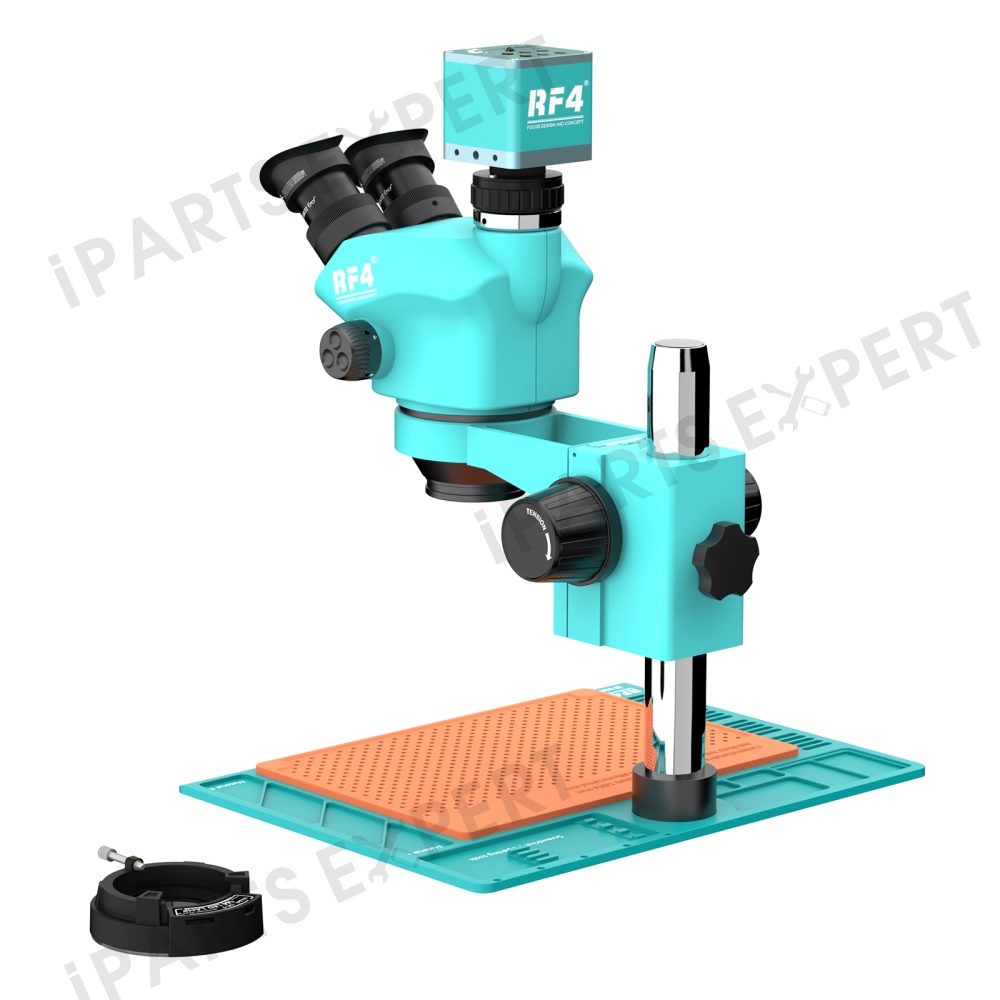

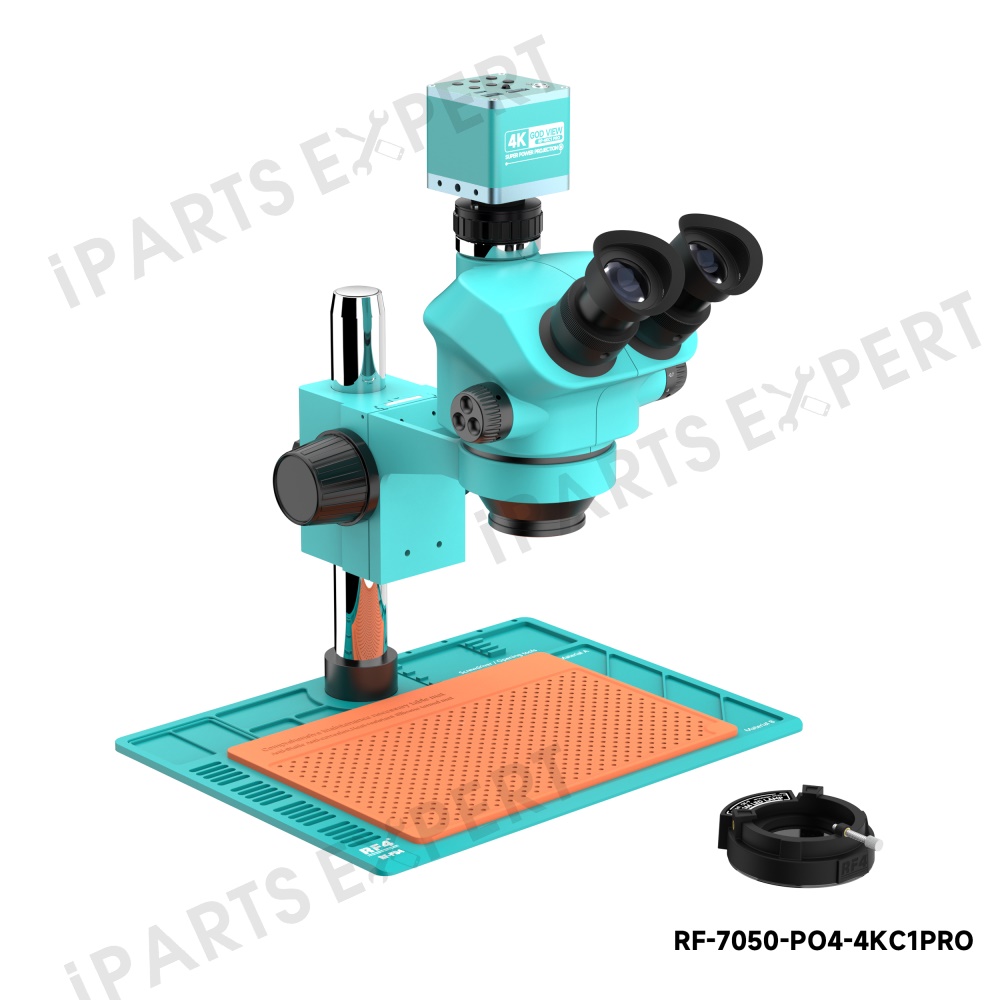

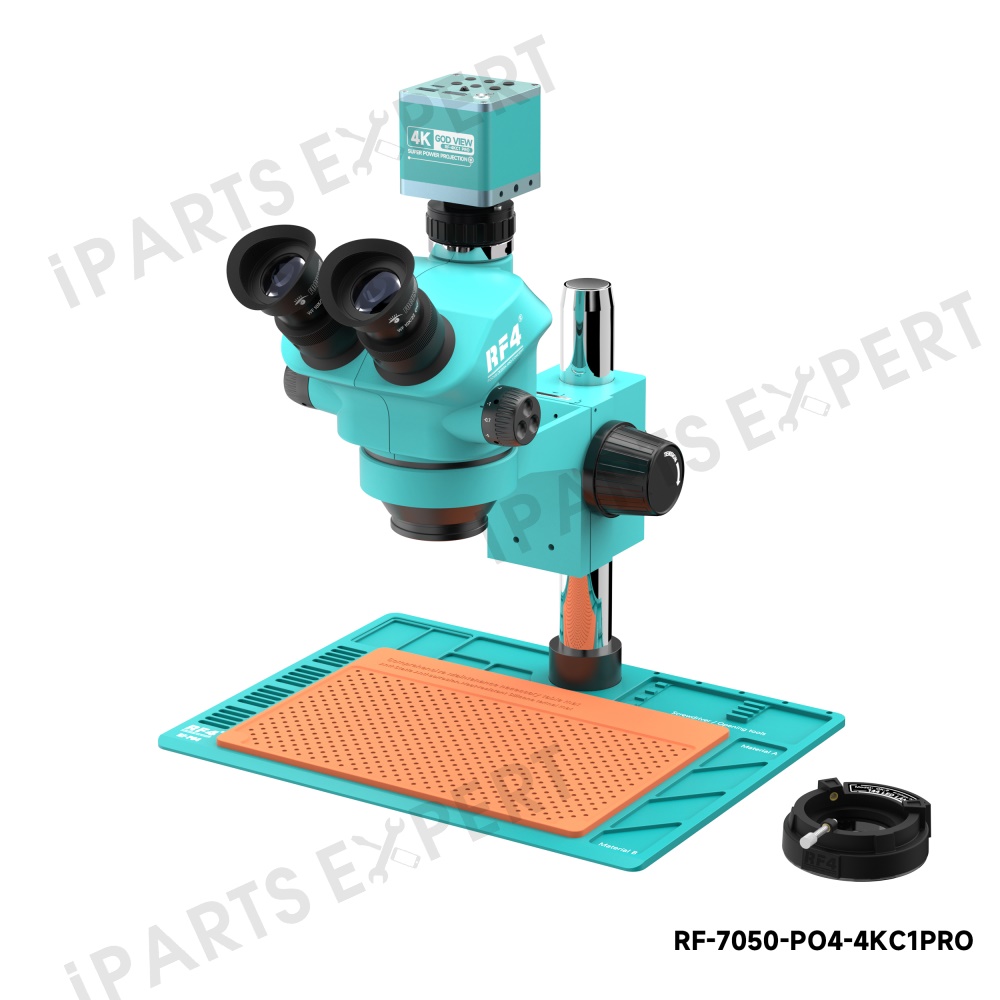

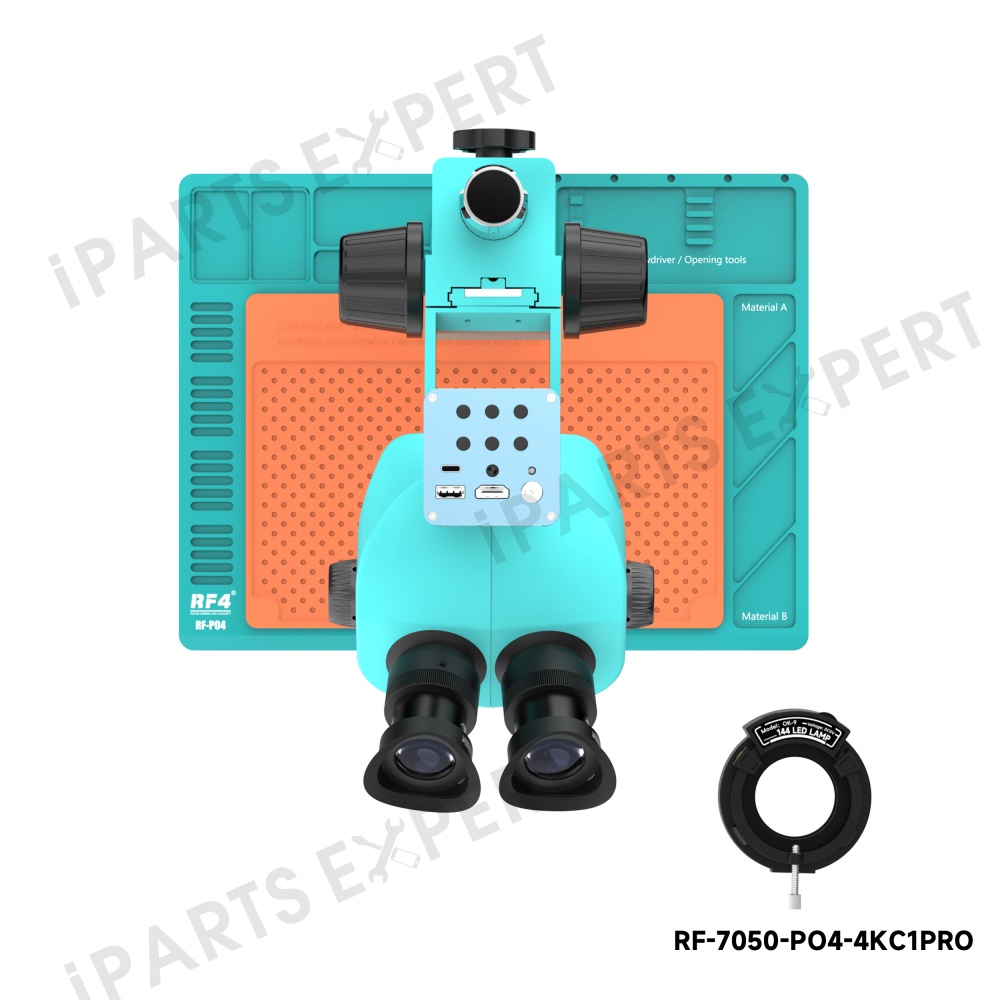

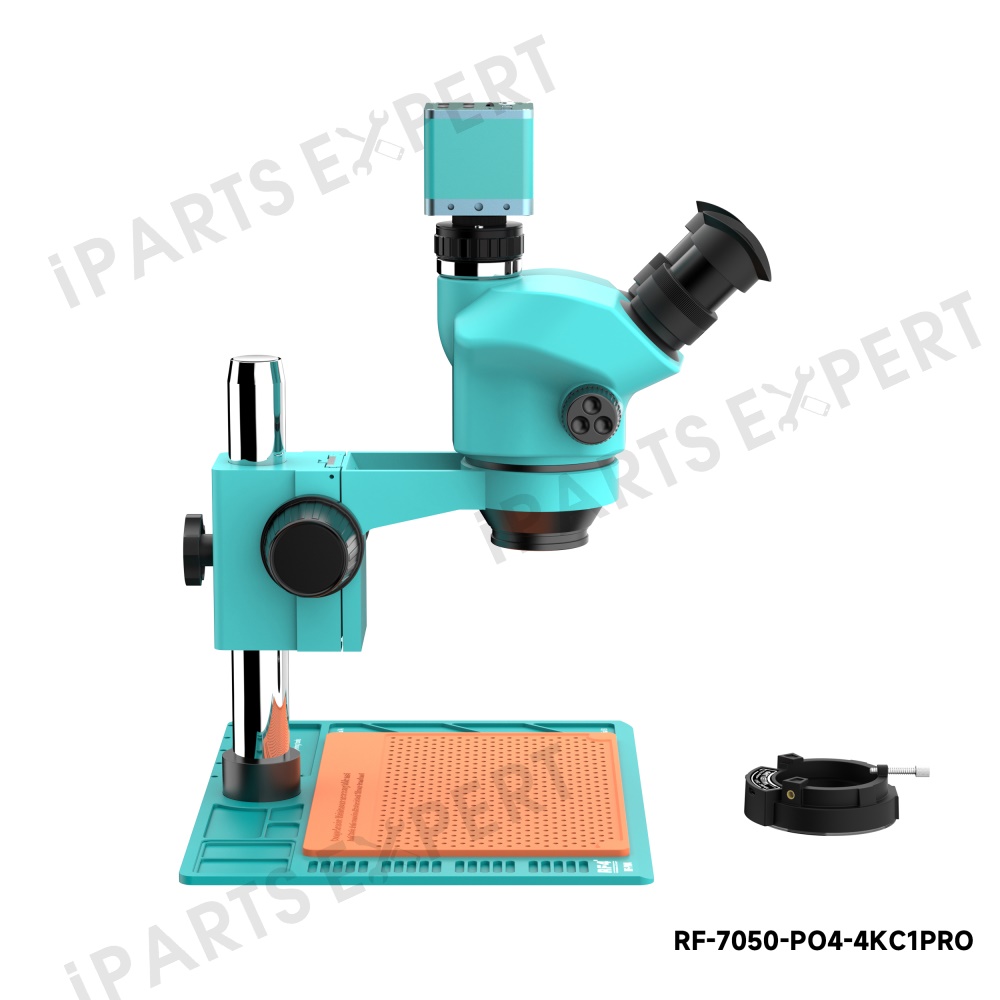

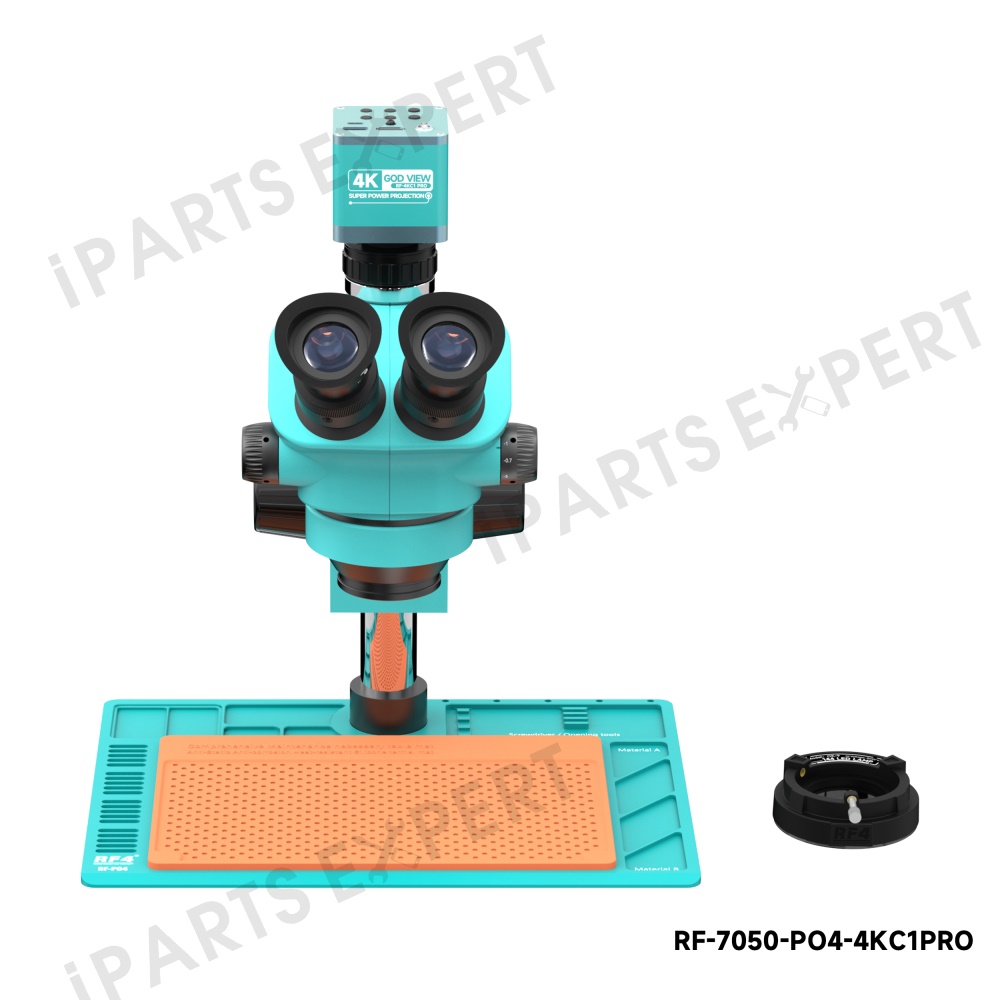

RF4 RF-7050-PO4-4K Stereo Microscope 4K HD Camera 7X-50X Zoom 144 LED Ring Light for PCB Repair
Rate: ( 0 reviews ) views: 62
Item No.: 6616001982A Ships in 1 - 3 days MOQ: 1
| 1+ units | 2+ units | 4+ units | 5+ units | 10+ units | 20+ units |
| $347.19 | $344.29 | $341.39 | $338.50 | $335.61 | $332.72 |
Contact Sales Manager
- [email protected]
- Ipartsexpert - Ada Shi
+86 - 18620397679
Specifications
- Brand :RF4
- Color :As Shown
- Gross Weight :7.280kg
- Volume Weight :9.048kg
- Length :44.000cm
- Width :34.000cm
- Height :27.000cm
- Weight :6.500kg
- EAN :
- PackageLength :59.000cm
- PackageWidth :40.000cm
- PackageHeight :35.000cm
- PackageQuantity :1
- With Retail Packaging :No
Product Description
RF4 RF-7050-PO4-4K Stereo Microscope 4K HD Camera 7X-50X Zoom 144 LED Ring Light for PCB Repair
- 【4K Ultra HD Imaging】Equipped with 3840x2160 4K ultra-high-definition camera delivering exceptional clarity for detailed observation and documentation of microscopic subjects.
- 【Continuous Zoom Capability】Features 7x to 50x continuous zoom magnification with 0.7-50x objective lens for versatile examination of various sample sizes and details.
- 【Professional Trinocular Design】45-degree inclined, 360-degree rotatable trinocular tube with WF10X/22MM eyepieces provides comfortable viewing and simultaneous camera operation.
- 【144 LED Ring Illumination】Adjustable 144-LED ring light with 30000-35000 Lux brightness and 6000-7000K color temperature ensures optimal lighting conditions for clear imaging.
- 【Multi-Function Work Platform】Includes anti-static silicone mat with organized sections for materials and tools, perfect for electronics repair and precision work applications.
- 【Advanced Recording Features】Built-in file manager supports USB storage up to 64GB with 8MP photo capture in JPG format and 4K video recording in AVI format.
Specifications:
- Model: RF-7050-PO4-4KC1PRO
- Magnification Range: 7x to 50x continuous zoom
- Trinocular Tube: 45° inclined, 360° rotatable
- Eyepieces: WF10X/22MM
- Objective Lens: 0.7-50x
- Camera Interface: 1/2 CTV
- Base Dimensions: 250x330mm
- Image Sensor: 1/2.8 inch
- Resolution: 4K/3840x2160 30fps
- Output Interface: HD 4K 30fps
- Control Method: Button operation
- Working Voltage: DC 12V
- Storage Support: USB drive, capacity ≤64GB
- Lens Type: C/CS interface compatible
- Photo Format: 8MP, JPG format
- Video Format: 3840x2160 AVI format
- Cross Lines: 8x8 groups
- File Manager: Built-in
- LED Count: 144 LEDs
- LED Input: AC 100~240V
- LED Output: DC 12V
- LED Power: 4.5W-6W
- Illumination: 30000-35000 Lux
- Color Temperature: 6000-7000K
- LED Inner Diameter: 60mm
Package included:
- 1 x Microscope
- 1 x Stand
- 1 x 0.5X CTV
- 1 x 144 LED Light
- 1 x Dust-proof Mirror
- 1 x 250*330mm Multi-functional Repair Base
- 1 x 4K Camera
