RF4 RF-6565-PO4 6.5X-65X Trinocular Stereo Microscope 4K Camera 144 LED Ring Light for PCB Electronics Repair
Rate: ( 0 reviews ) views: 62
Item No.: 6616001979A Ships in 1 - 3 days MOQ: 1
| 1+ units | 2+ units | 4+ units | 5+ units | 10+ units | 20+ units |
| $415.51 | $412.05 | $408.59 | $405.12 | $401.66 | $398.20 |
Contact Sales Manager
- [email protected]
- Ipartsexpert - Ada Shi
+86 - 18620397679
Specifications
- Brand :RF4
- Color :As Shown
- Gross Weight :7.728kg
- Volume Weight :8.515kg
- Length :43.000cm
- Width :34.000cm
- Height :26.000cm
- Weight :6.900kg
- EAN :
- PackageLength :59.000cm
- PackageWidth :40.000cm
- PackageHeight :35.000cm
- PackageQuantity :1
- With Retail Packaging :No
Product Description

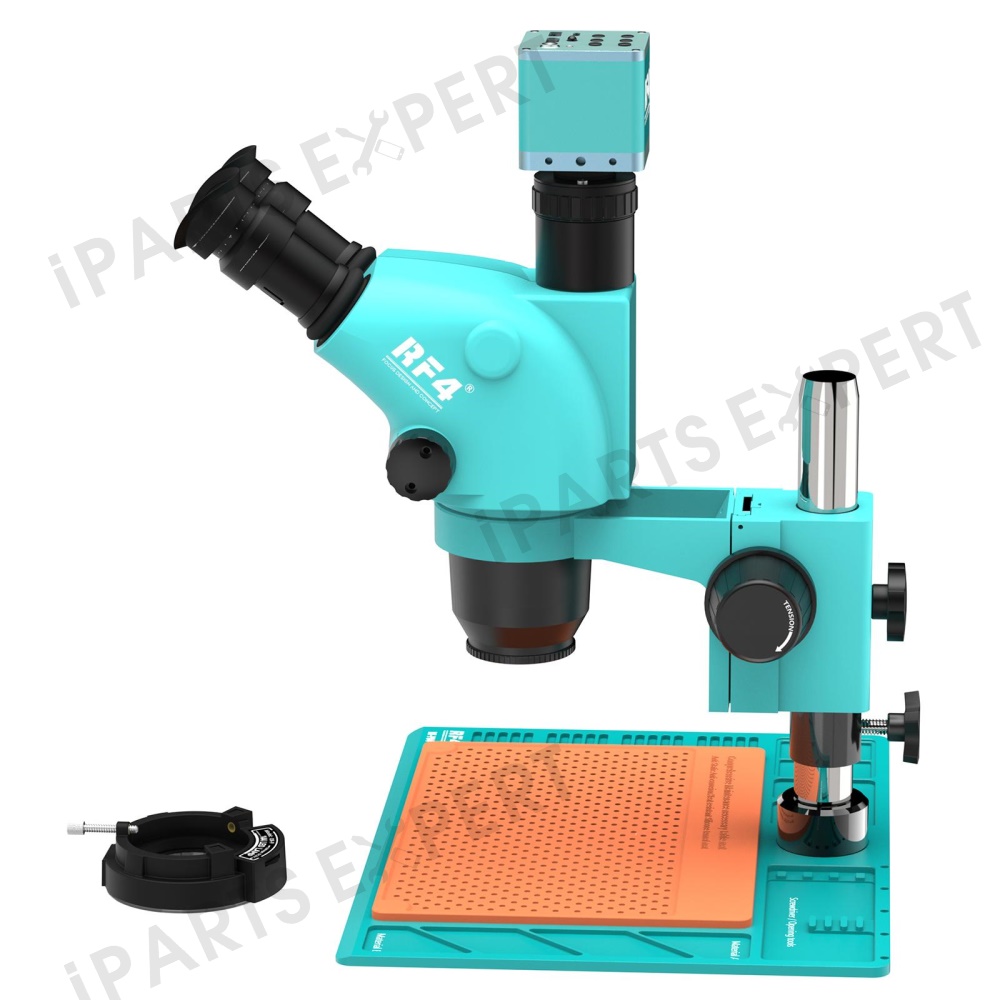

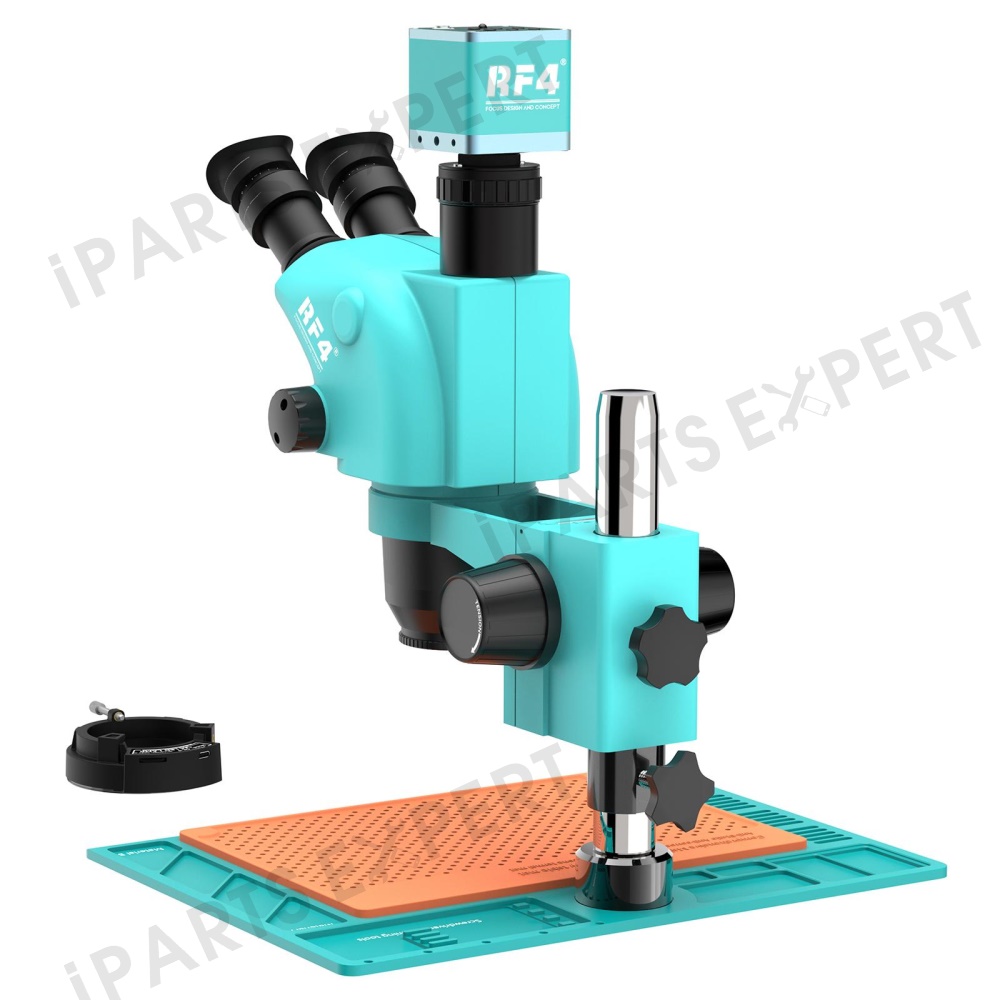

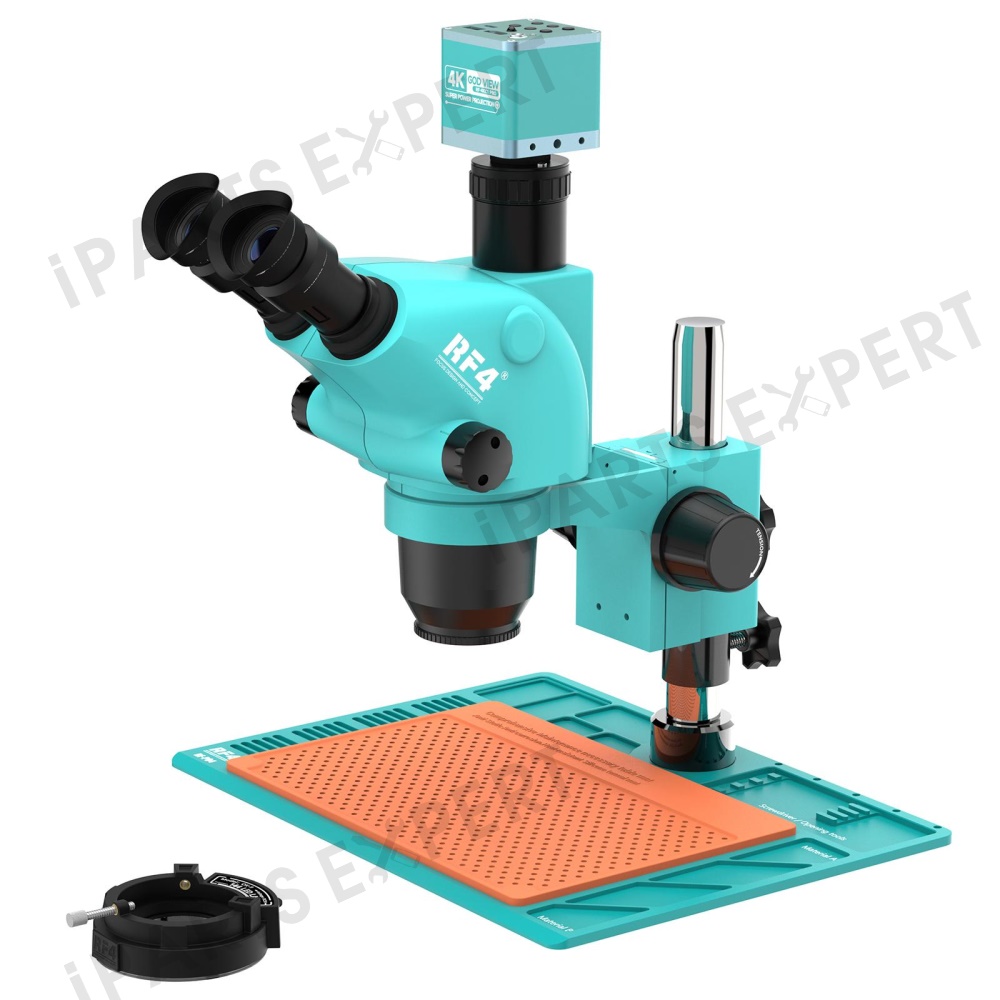

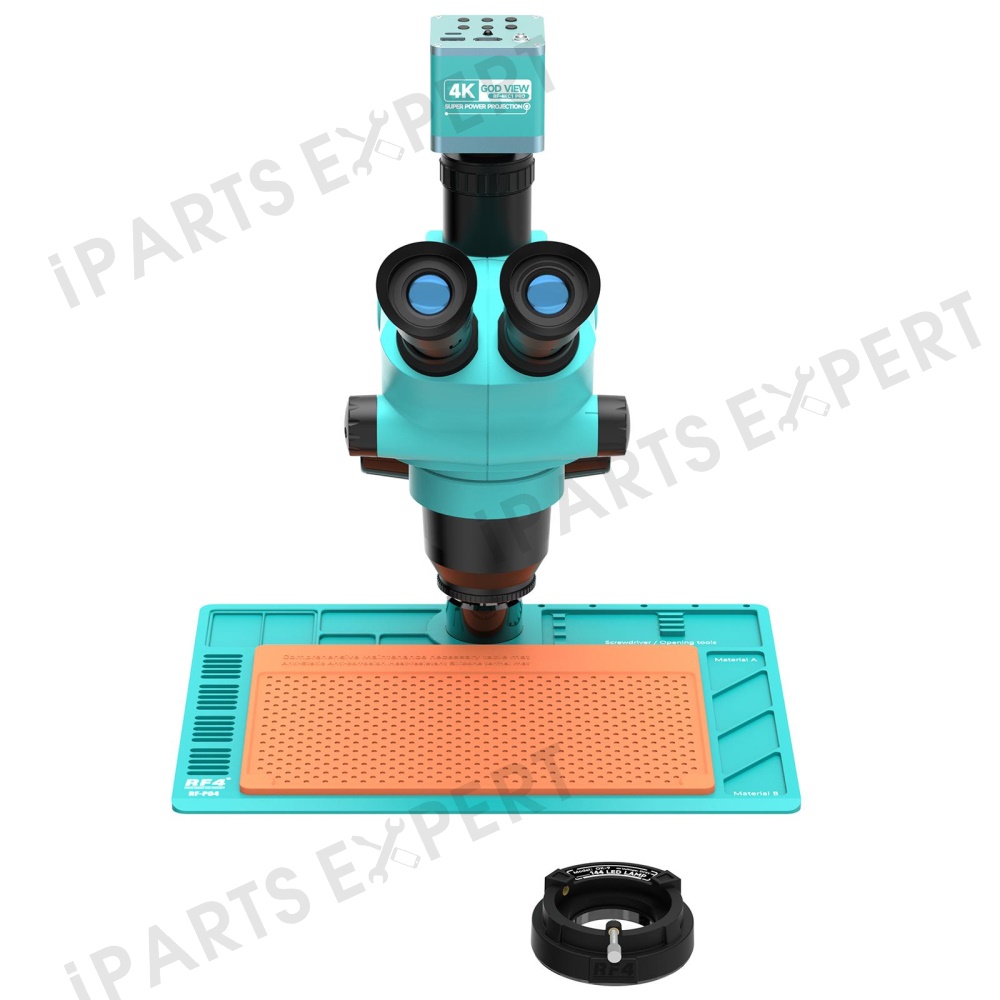

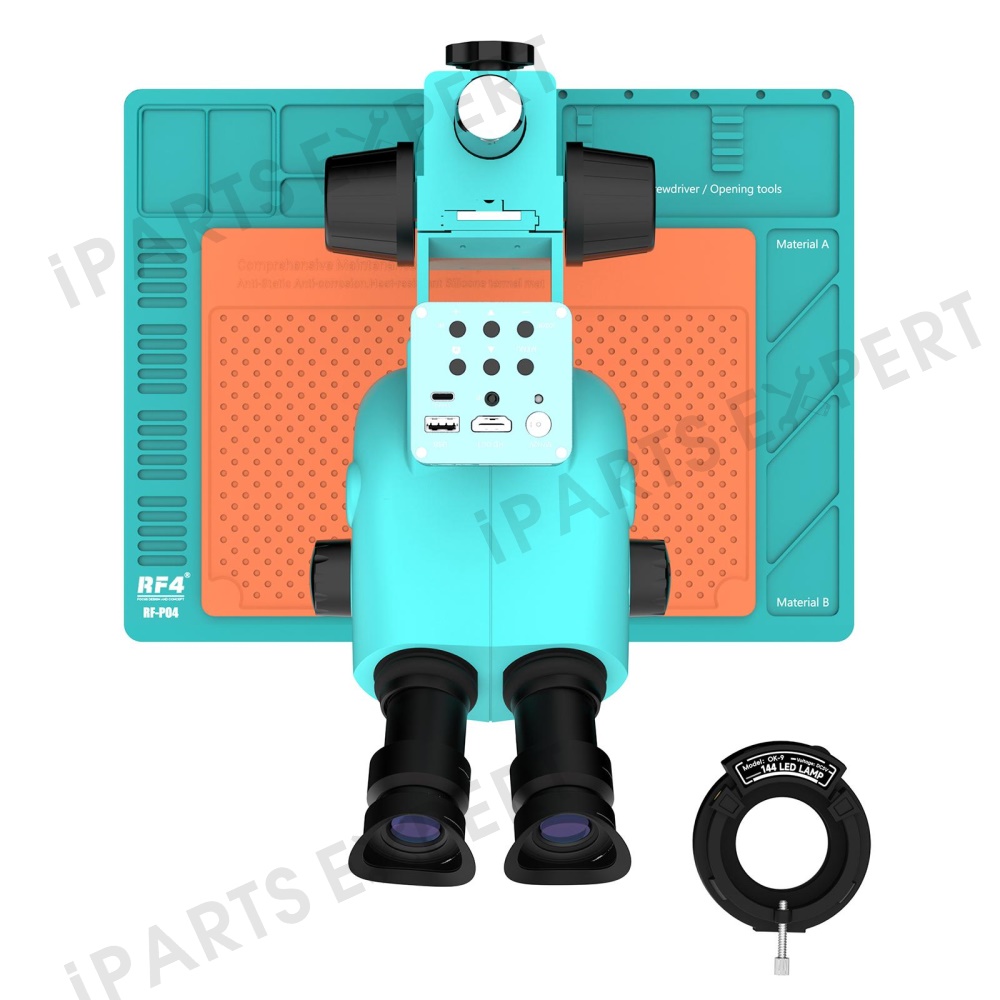

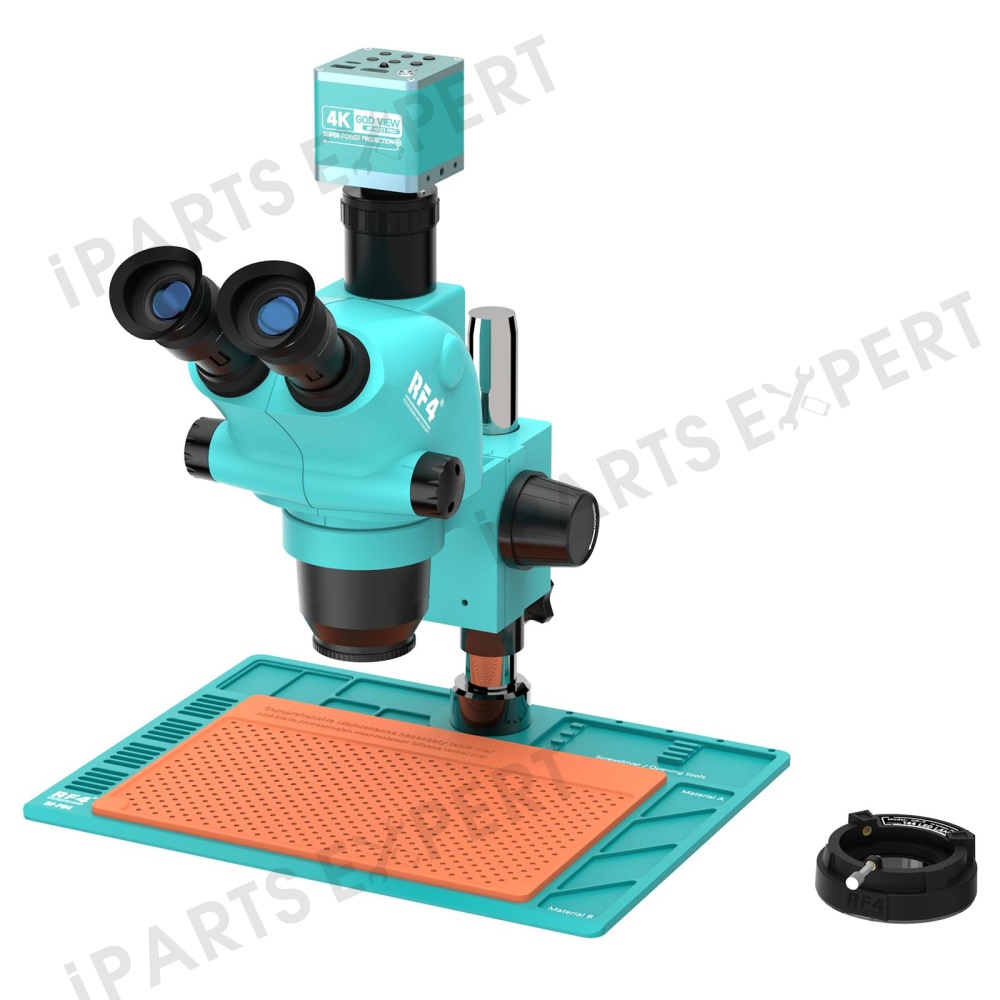

RF4 RF-6565-PO4 6.5X-65X Trinocular Stereo Microscope 4K Camera 144 LED Ring Light for PCB Electronics Repair
- 【6.5X-65X Continuous Zoom】Professional trinocular stereo microscope with continuous zoom magnification from 6.5X to 65X for detailed observation and precision work.
- 【4K Ultra HD Camera】Integrated 3840x2160 4K camera with 30fps recording capability and HD output for real-time high-definition imaging and documentation.
- 【144 LED Ring Light】Professional 144-LED ring light provides over 30,000-35,000 Lux illumination with 6000-7000K color temperature for optimal lighting conditions.
- 【Trinocular Design】45-degree inclined 360-degree swiveling trinocular head allows comfortable viewing while simultaneously capturing images through the camera port.
- 【Anti-Static Work Mat】Includes heat-resistant, anti-corrosion silicone work mat with dual material zones and integrated tool storage for electronic repair applications.
Specifications:
- Model: RF-6565-PO4-4K
- Magnification: Continuous zoom 6.5X to 65X
- Head: 45-degree inclined 360-degree swiveling trinocular
- Eyepiece: WF10X/22MM
- Objective: 0.65-6.5X
- Camera Connector: 1/2 CTV
- Base Size: 250x330mm
- Image Sensor: 1/2.8 inch
- Resolution: 4K/3840x2160 30fps
- Output Interface: HD 4K 30fps
- Working Voltage: DC 12V
- Storage: USB disk, capacity less than or equal to 64GB
- Lens Type: Supports C/CS interfaces
- Photo Resolution: 8 million, JPG
- Video Format: 3840x2160 AVI
- Cross Curve: 8x8 groups
- File Manager: Yes
- LED Count: 144 LEDs
- LED Input: AC 100~240V
- LED Output: DC 12V
- LED Max Output: 4.5W-6W
- Illumination: Over 30,000-35,000 Lux
- Color Temperature: 6000-7000K
- LED Inside Diameter: 60mm
- Working Temperature: 0-40°C (estimated)
Package included:
- 1 x Microscope
- 1 x 4K Camera
- 1 x Column
- 1 x Base
- 1 x Sync Adapter
- 1 x Ring Light
- 1 x Dust Cover
